16 Dof Humanoid Robot with Servo and MP3 Dance Robot Singing Dancing Walking RoboSoul Educational Programmable Bionic Robot Kit

16 Dof Humanoid Robot with BUS Servo Dance Robot Singing and Dancing Walking RoboSoul H5S Educational Programmable Bionic Robot

Description :

This robot includes one head, one main body, two arms, two legs, use digital servo power. This robot could finish walking, squat, turning, side slide movements, and could dancing, fighting, or more complicated movements. If with related sensors, could climbing stairs, tracking lines, etc.

- Structure: 1mm aluminum alloy strucutre, light weight and high strength

- Servo: digital servo, high torque, high precision，Anti-blocking servo，Easy to Wire

- Controller: robot controller, with overloading, low voltage alarm

-Anti-skid Pad

Title: Intelligent humanoid dancing robot singing and dancing RoboSoul H5S educational programmable bionic robot

Body parameter:

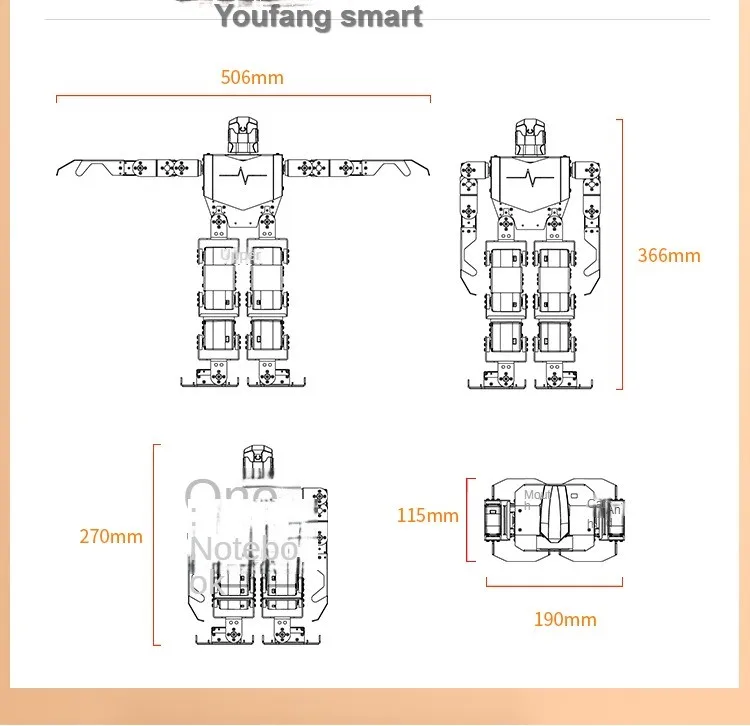

Product size:

Height 366* Shoulder width 190* Thickness *115(mm)

Body weight: about 1.7kg

Body material: duralumin alloy, surface hardened and combined with reinforced structural design

Power supply system

Battery: 11.1V 2000mAh 10C

Endurance: continuous operation of about 60min

Shoulder: 2 DOF

Hands: 2 DOF(for each arm)

Legs: 4 DOF(each leg)

Feet: 1 DOF(per foot)

Control system:

Hardware part: H5S special steering gear controller

Software: PC visualization software +Android and iOS mobile APP

Steering gear parameters: LX-824HV high voltage bus steering gear, metal gear; Weight: about 57g,

Size :40*20.14*51.1mm,

Torque :17kg/cm 11.1V

Control mode: Computer control /Android and iOS mobile APP/ Tablet/controller control

Delivery size: 455*325*170mm

Overall weight (including packaging) : about 3kg

Product list:

H5S intelligent robot x1

PS2 controller and receiver x1

Battery and Charger x1

Data cable x1

Note:

1.We can provide technical documents to our customers, please leave your email address or contact us.
