4WD Robot Car Omnidirectional Mecanum Wheel AI Visual Recognition Tracking For Arduino Robot DIY Kit UNO Programmable Robot Car

4WD Robot Car Omnidirectional Mecanum Wheel AI Visual Recognition Tracking For Arduino Robot DIY Kit UNO Programmable Robot Car

Product Description

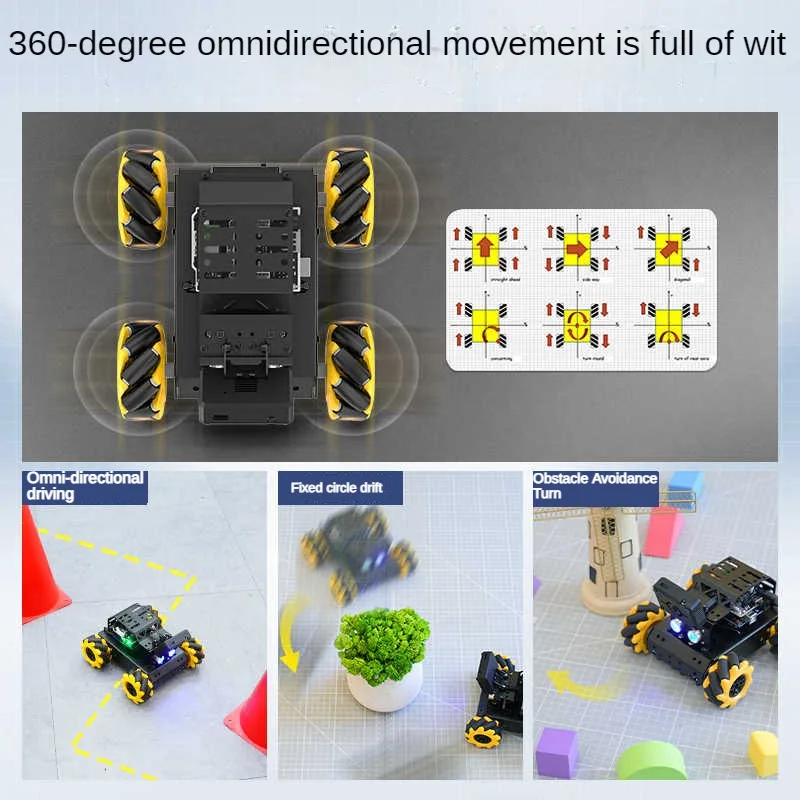

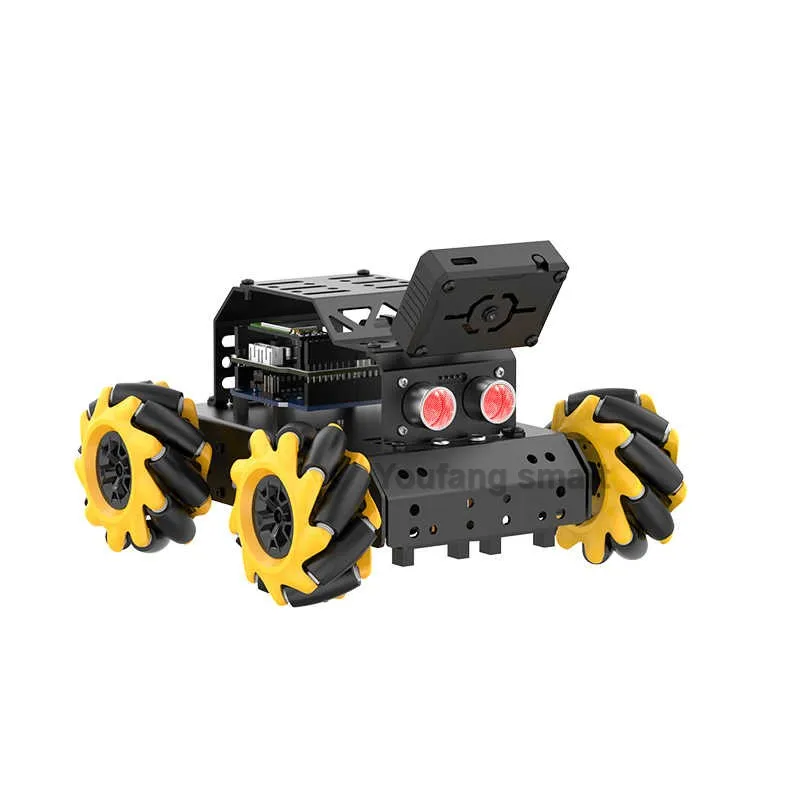

miniAuto is an entry-level AI vision robot car
launched by Hiwonder. Designed with mecanum wheels, it offers 360-degree
omnidirectional movement and features a main control unit that is fully
compatible with the Arduino UNO R3 and its programming platform.

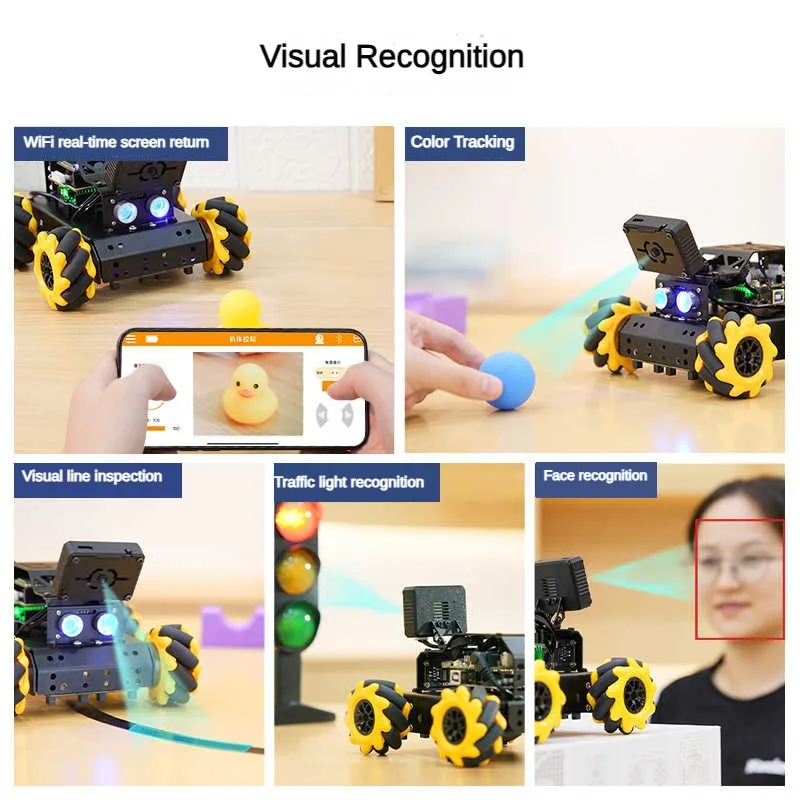

miniAuto comes equipped with high-performance hardware, including the
ESP32-S3 WiFi vision module, an ultrasonic sensor, a 4-channel line
follower, and a Bluetooth module. It also includes several reserved
expansion ports and supports gripper upgrades, enabling users to easily
engage in secondary development. Arduino Compatibility miniAuto is developed in the Arduino
environment, with software compatible with the Arduino IDE. As an
open-source platform, it enables users to quickly develop and debug
their projects. APP Control miniAuto features a built-in Bluetooth 4.0 module. By connecting to miniAuto's Bluetooth, you can control it via the APP.

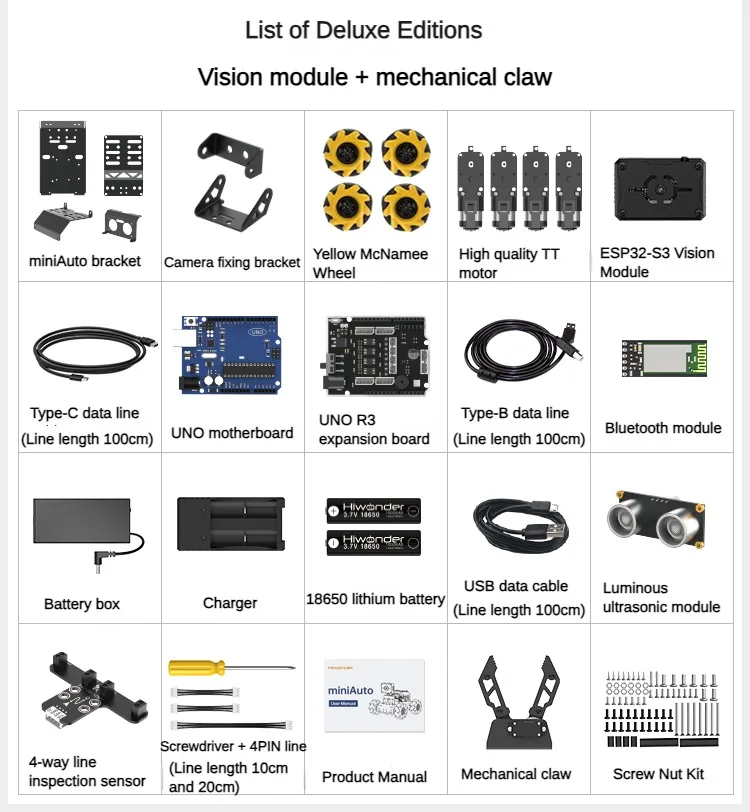

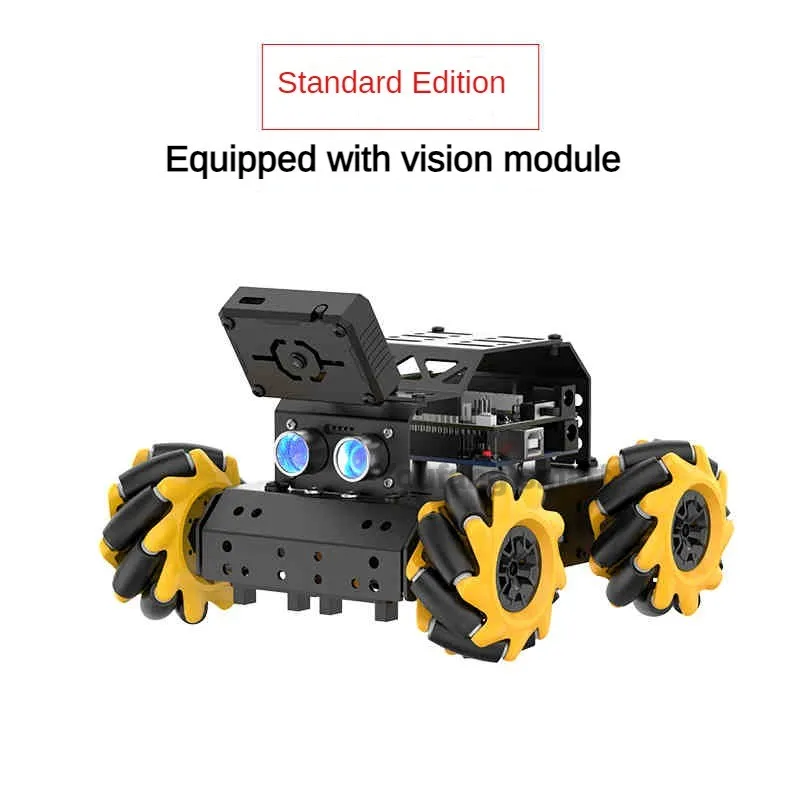

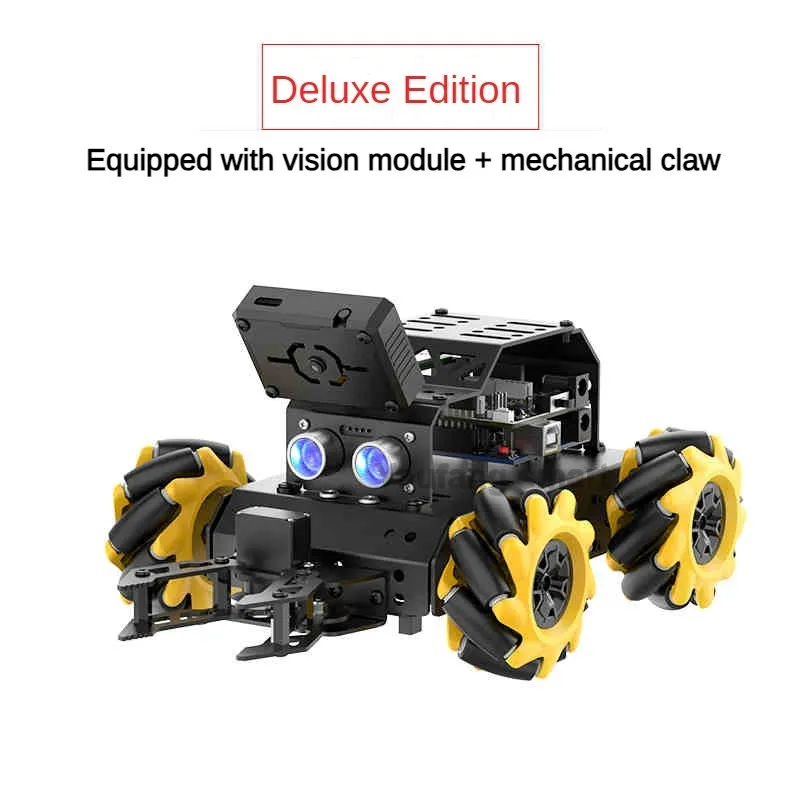

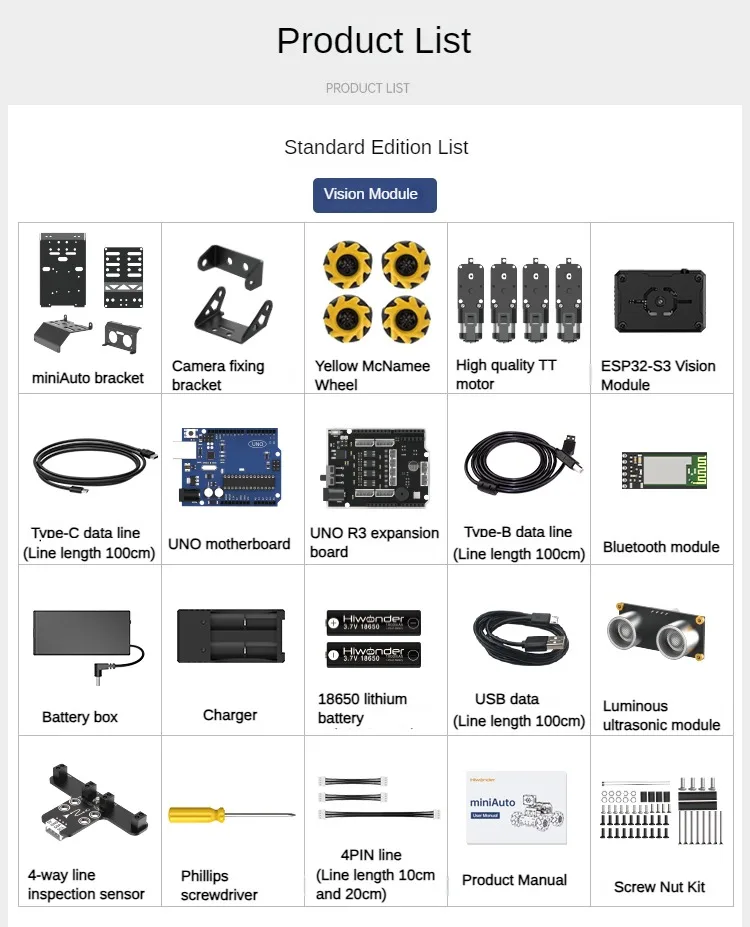

Title: Arduino smart car miniAuto omnidirectional wheat wheel AI visual recognition tracking UNO programming robot Product Size: 176*164*138(mm) Product Weight: 710g (Standard Version) Body Material: Metal Bracket Camera: 200W pixels Power supply: Two 3.7V18650 batteries (1800mAh) Main control system: Arduino UNO Software: iOS/Android mobile APP Communication mode: Bluetooth Motor model: HY3277-130 high quality TT motor Control mode: mobile phone control/somatosensory glove control (sold separately) Shipping size: 300*170*120 (mm) Overall weight (including packaging): about 1.1kg   Shipping list: Standard kit list: MiniAuto bracket Type-C cable (cable length 100cm) Camera mounting bracket UNO motherboard Yellow Mecanum Wheel UNO R3 expansion board High-quality TT motor Type-B cable (cable length 100cm) ESP32-S3 Vision Module Bluetooth module Battery compartment 4-way line patrol sensor Charger + Plug for all countries(Free gift) Phillips screwdriver 18650 lithium battery (1800mAh) 4PIN cable (10cm and 20cm cable length) USB cable (cable length 100cm) Product Brochure Luminescence ultrasound module Screw nut accessory kit   Advanced kit List: MiniAuto bracket Type-C cable (cable length 100cm) Camera mounting bracket UNO motherboard Yellow Mecanum Wheel UNO R3 expansion board High-quality TT motor Type-B cable (cable length 100cm) ESP32-S3 Vision Module Bluetooth module Battery compartment Charger + Plug for all countries(Free gift) 18650 lithium battery (1800mAh) USB cable (cable length 100cm) Luminescence ultrasound module 4-way line patrol sensor Screwdriver + 4PIN cable (10cm and 20cm cord length) Product Brochure Mechanical claws Screw nut accessory kit

Note:

If you need this manual of Robotic car routines and development documentation, please contact us and leave your email.
