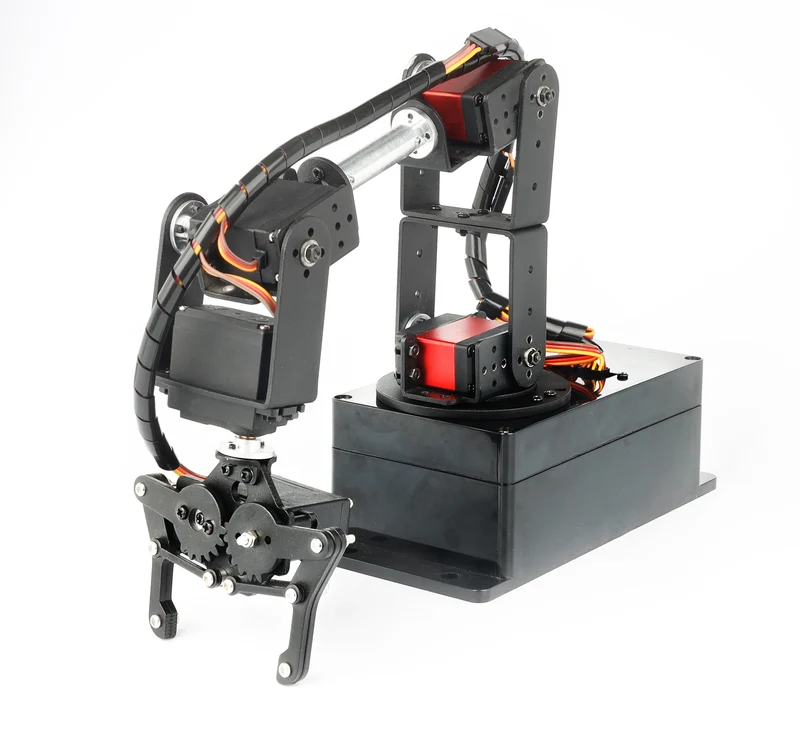

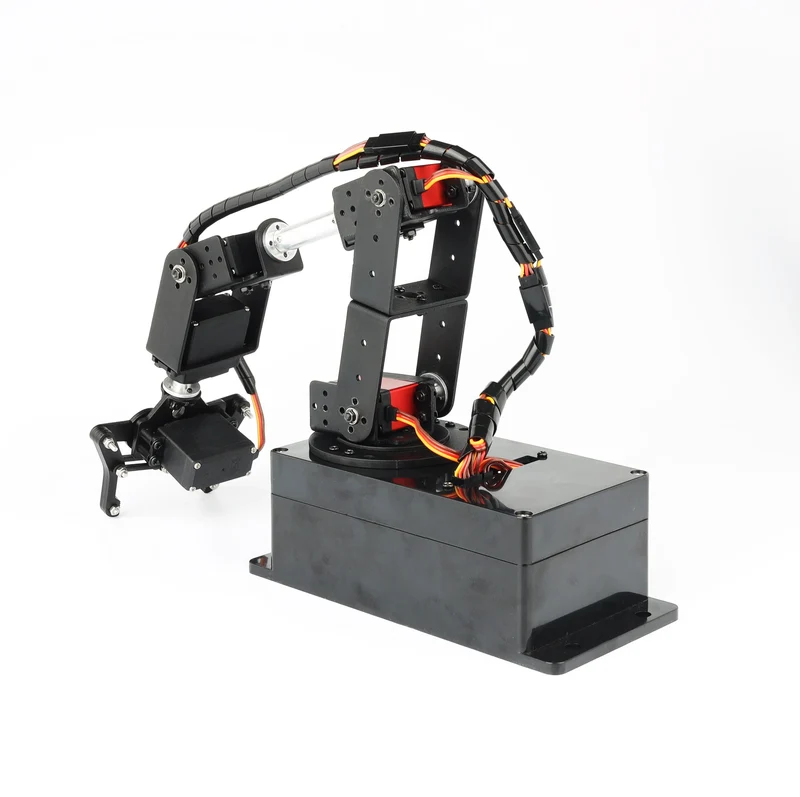

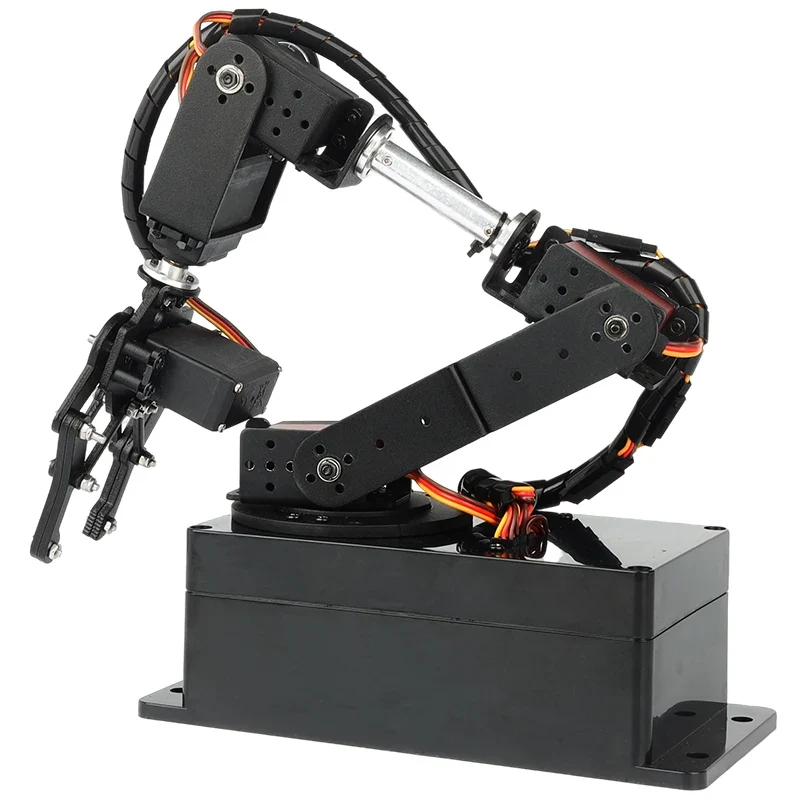

6 dof Robot Arm Multi DOF Manipulator Robotics Gripper Claw PS2 Controller Digital Serco For Arduino Programming

6 dof Robot Arm Multi DOF Manipulator Robotics Gripper Claw PS2 Controller Digital Serco For Arduino Programming

Parameters:

• Product weight: 1.5kg

• Horizontal crawling: support

• Grab weight: 200g

• Travel range: 410mm

• Clamping range: 5-55mm

• Mechanical error: 0.8cm

• Servo torque: 13-25kg.cm

• Working current: 800-1500mA

• Working voltage: 4.8-7V

• Servo travel range: 0-180 degrees

• Servo frequency: 50Hz

• Servo cycle: 20ms

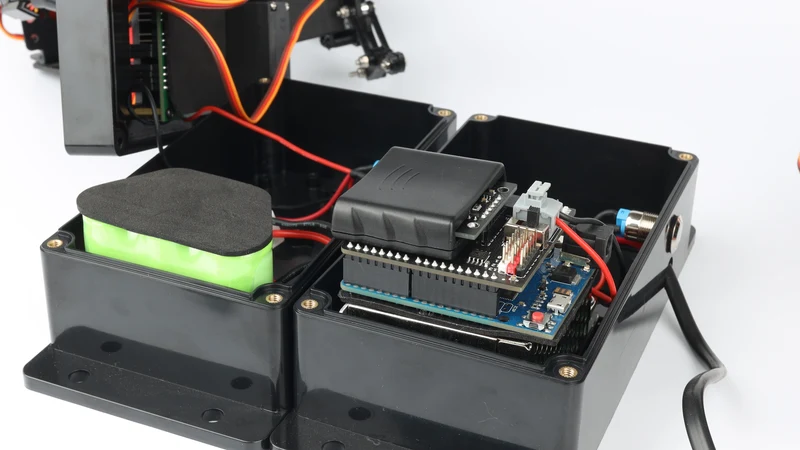

• Main control chip: Atmega328p

• Control channel: 6

• Action storage: support

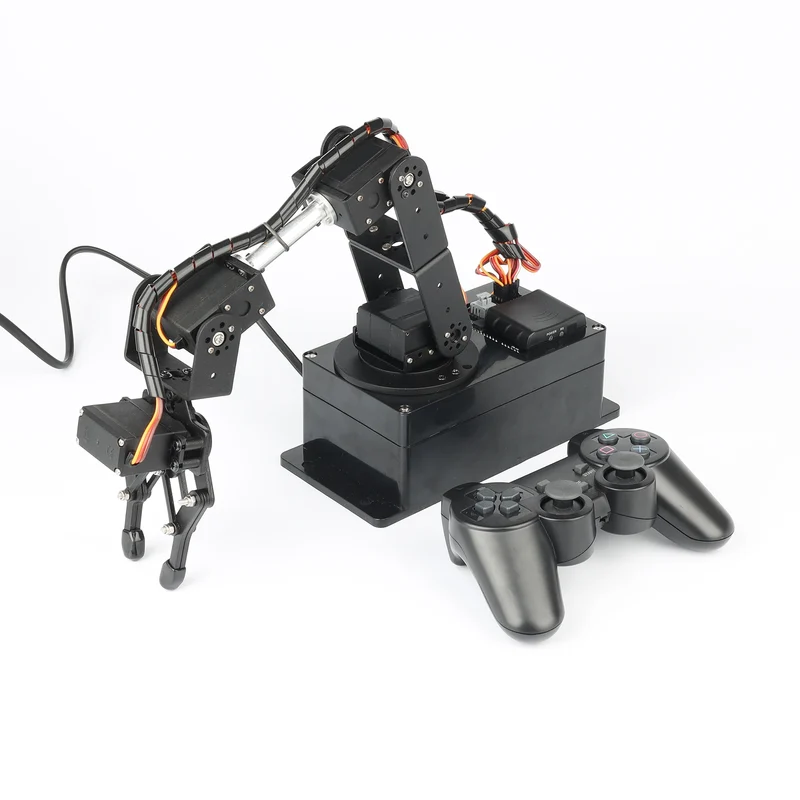

• Control type: PS2, programming

Note： the product is unassembled, we offer the PDF manual and source code.

Use advanced algorithms

Shipping list (updating)
