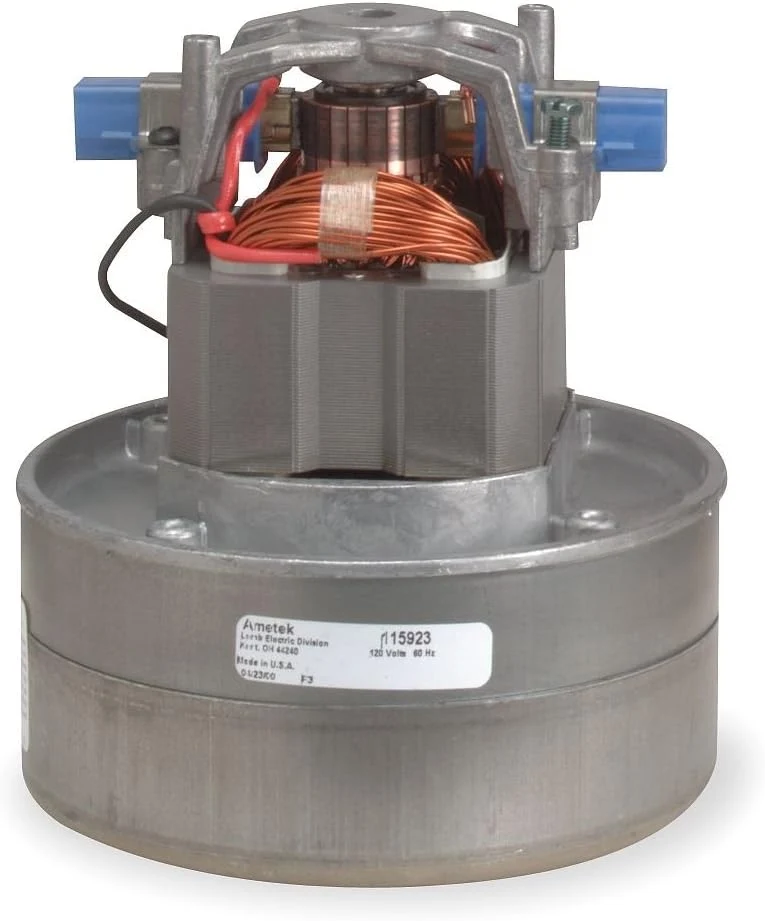

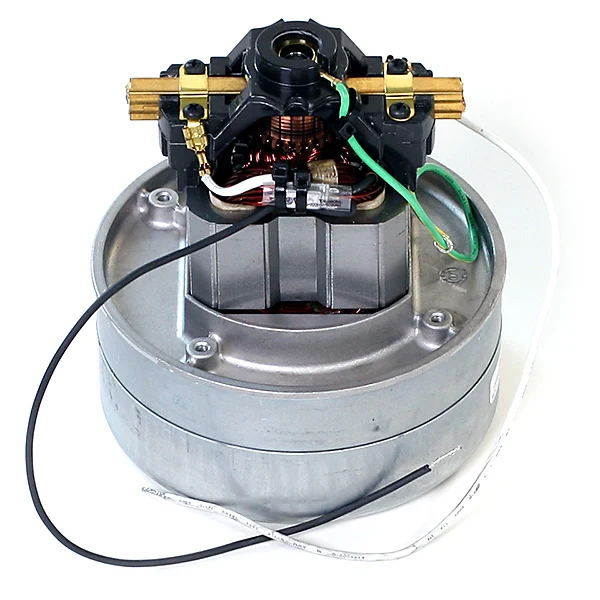

Ametek 115923 Blower / Vacuum Motor, 4M903

Brand New Genuine Ametek Lamb 2-Stage 5.7" Hi Performance Electric Motor. Fits some TriStar, some Meile including Miele 3000 Series vacuums, s314i and some other vacuum cleaners. Also fits some blower models. Also fits PTW103 Dog Wash System. Works with E-Dry, most K-9 dryers, Most of the Hurry Canine dryers, Metro Dryers, Romani and many others. Will with most central vacuum built in systems like Nutone 352


Motor Dimensions: Fan Housing: 5.7", Overall Height: 6 1/4". Please check the motor specs before ordering.
Thru Flow Vacuum Motor/Blower, Body Diameter 5.7 Inches, Blower Stages 2, Voltage @ 50/60 Hz 120 Volts, Maximum Current Rating 10.8 Amps, Maximum Air Power 447 Watts, Bearing Ball/Ball, Air Flow @ 2 Inches Orifice 122.0 CFM, Vacuum (H2O Sealed) 100.4 Inches, Thermal Protection No, Style B, Overall Height 6 3/16 Inches, High Efficiency. Prt #115923, 115-923, 5923

⚠ Works with Miele models that accept H/J/G bags. Does not fit the newer Miele Models. Please reach out to us with your model number if you are not sure.


Some of the customers may experience some issue in installing this motor. One of our customer got it resolved by going some extra steps. As per him,

"The fan shroud on this motor is different from the one on the motor in the vacuum. I just removed the blower housing from the old motor and put it on the new one, and also moved over the board with all the wiring and hooked up the power leads to that board in the same postilions where the old wires were plugged in.

Just to be safe, I ran a sharpie around the edge of the blower housing on the new motor so I would be able to install the new housing correctly. All it takes is a large screwdriver, a hammer and some patience to move the blower housings. "

He has a Miele White Star. Hope this information is useful. Thanks to George for sharing this.
