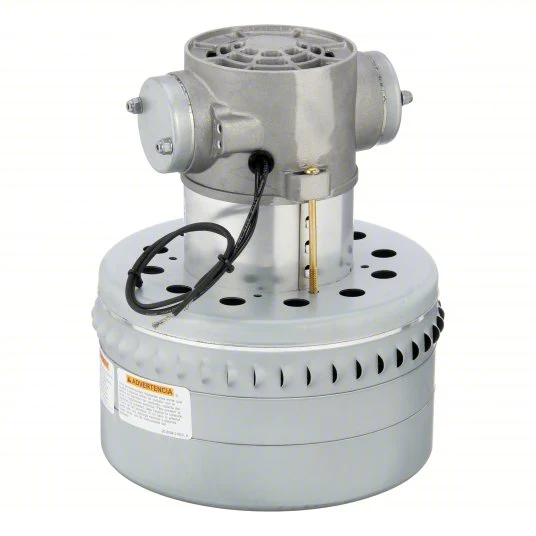

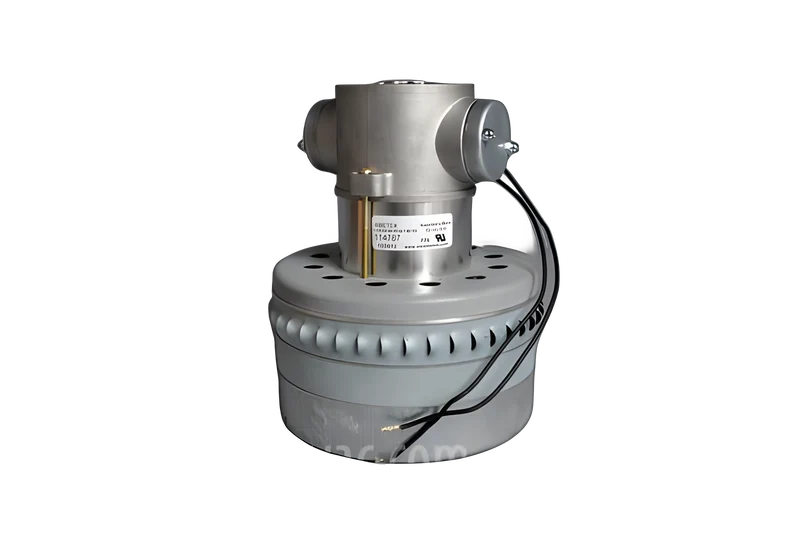

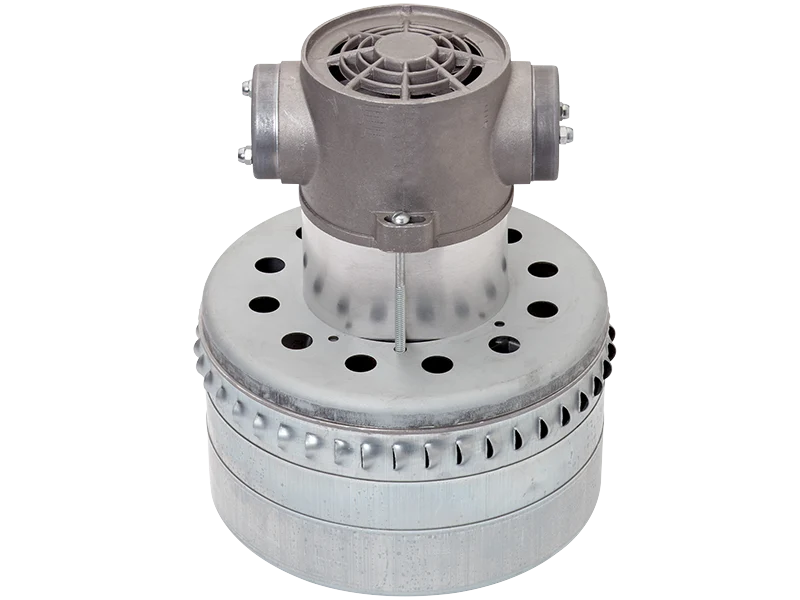

Ametek Lamb Motor, Metal Mounting Brackets, 7.5 in Body Dia., 120V AC, 3 Blower Stages #114787

Lamb 7.5" Bypass Peripheral Vacuum Motors reach sealed vacuums up to 88" of H2O and flow rates up to 126 CFM. With a legacy design that sets the standard for industrial applications, these motors feature all diecast construction and serviceable brushes to extend their lifespan.

Key Applications:
The Ametek Lamb Motor stands as an industry-standard solution for demanding suction applications across multiple sectors. Engineered with a robust three-stage blower design, this 120V AC motor delivers exceptional airflow and suction power essential for high-performance vacuum systems. The 7.5-inch body diameter accommodates standard mounting configurations, while the included metal mounting brackets ensure secure, vibration-resistant installation in any orientation. This motor excels in central vacuum systems for both residential and commercial properties, providing the consistent, powerful suction required for whole-home cleaning. In commercial car wash environments, its heavy-duty construction and multi-stage design handle continuous operation and demanding debris loads without compromise. Industrial and commercial vacuum manufacturers rely on this motor for applications requiring sustained performance, durability, and reliable blower capacity. Built to withstand extended runtime and challenging operating conditions, the Ametek Lamb Motor delivers the dependable power that professionals demand.

Frame Size: 7.5 inches
Volt: 120
AC/DC: AC
Fan Stages: 3
Output: Peripheral
Replacement Brush Kit: 833300-50
Motor Type: 7.5-Indust
Speed Control: None
Flow Class: Heavy Duty
Power Level: 1150 Watt
RPM: 14,620 RPM

Insulation: ClassA Average Motor Life: 1,000 hr Bearing Type: Ball Motor/Blower Type: Bypass Duty Cycle: Intermittent Max. Ambient Temp.: 40 °C Max. Amps: 7.3 A Mounting PositionAll Angle Overall Height: 9-1/2 in Overall Length: 9-1/2 in Standards: UL Recognized (E47185) Full Load Amps @ 50 Hz: 11.6 A UNSPSC: 26101604 Country of Origin: Mexico (subject to change)

Part #114787
