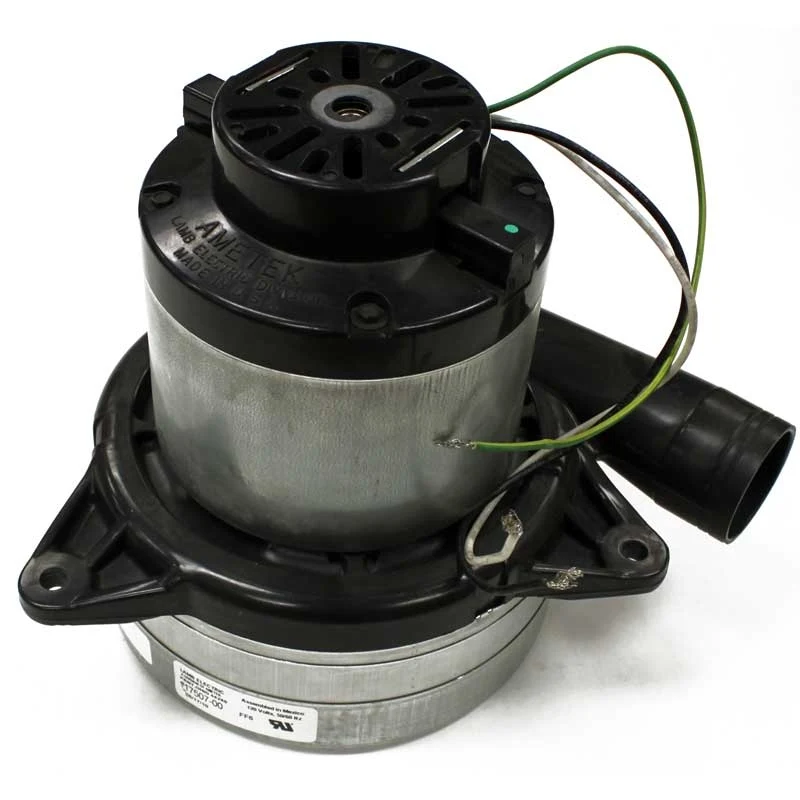

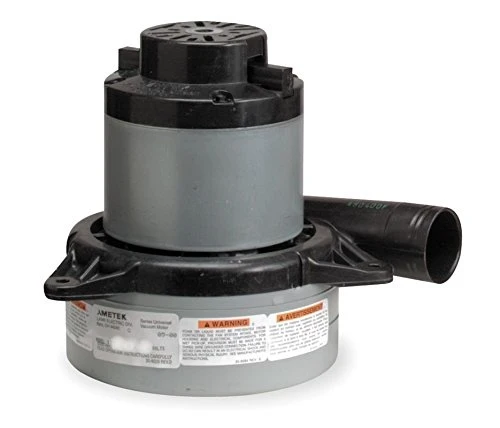

Ametek Lamb Vacuum Blower / Motor 3-Stage, 7.2 Inch Diameter, 110-120 Volts 117507-00

This motor is a 7.2" 120 volt, B/B, 3 stage, Tangential bypass motor. Used in several central vac models including the Nutone CV353. Also replaces 116507-00 120 VAC 50-60 Hz, 747012 and 117470, 140242, 140243, 7694-01.

This motor can be used for
AstroVac MK-XXIII, MK-XXVIII
BEAM 297, 297C, 297D, 297F, 297G, 297S, 297SP, 299A, 2240, 2240A
Broan CV-28, V28C
Brute 99025, 99026, 99150, Hi-Performance 99025, Power Performance 99026, Cyclonic 99150
Budd 7811
Dust Care DCC5
Eureka CV2002B, CV2002CF, CV2002D, CV2101D, CV2101F, CV2101FF, CV2101X
Nutone 353, CV353, CV553, CV653
Powerstar 99025, 99026, 99150
Vacuflo 360, 860
WalVac 247

Lamb Ametek 117507-00 motor is 3-stage, 7.2 inch, 110-120 volt.
Motor Type: Bypass
Discharge: Tangential
Bearings: Double Ball Bearing Sealed
Vacuum: 134.1 inches Maximum Air Watts: 406 Maximum
Air Flow: 94 CFM
Motor Speed: 17,200 RPM
Height - 8.5"
Bottom Diameter - 7.2"
