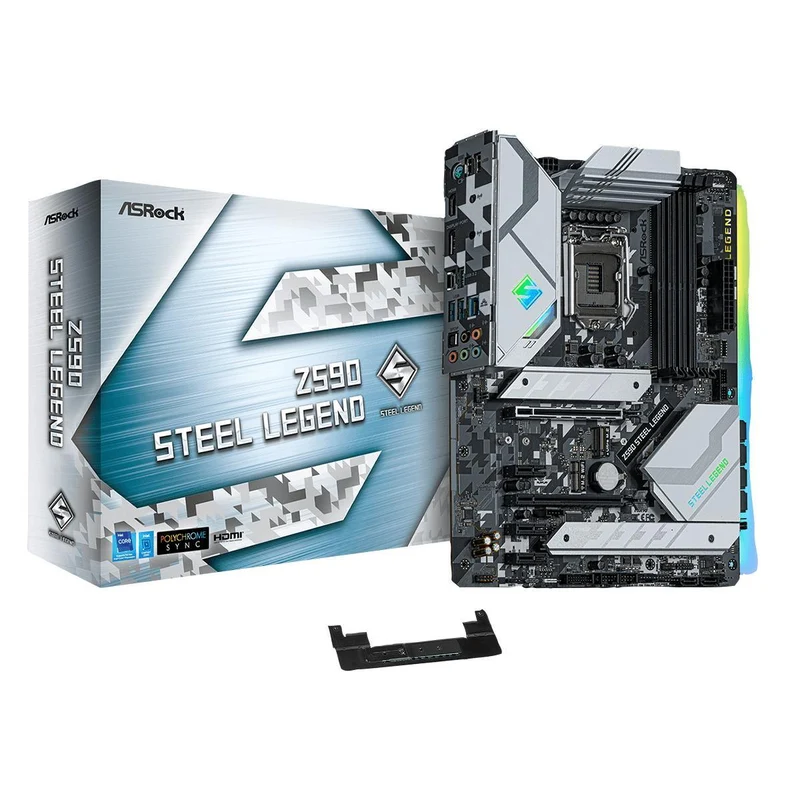

ASROCK Z590 STEEL LEGEND LGA 1200, Intel 11th, ATX Motherboard ,M.2, PCIe 4.0, USB 3.2, 2.5GbE LAN

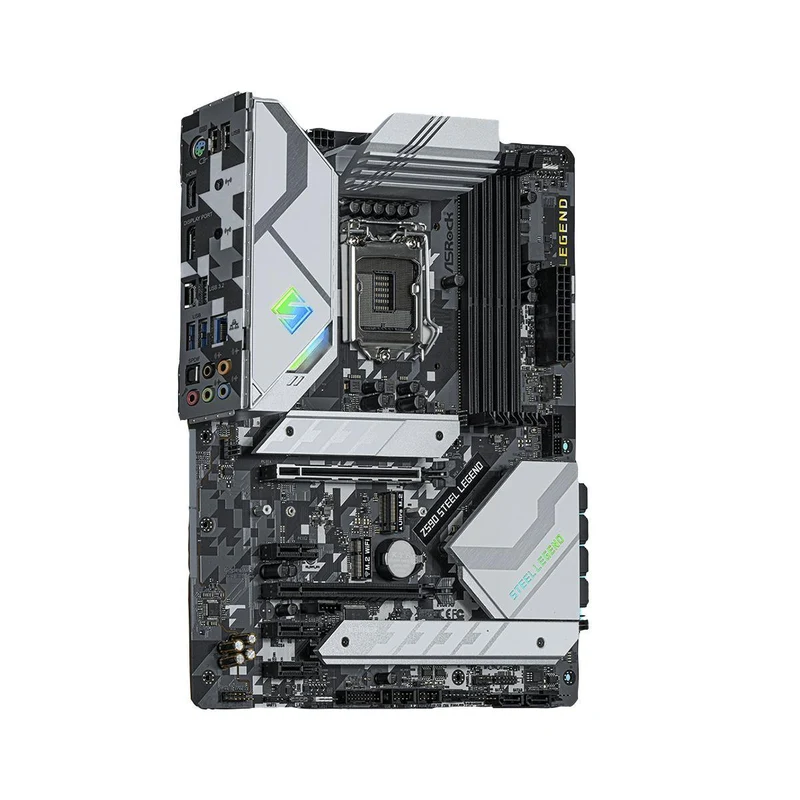

ASROCK Z590 Steel Legend LGA 1200 motherboard helps maximize your computing power, delivering 14 power phase designs and supporting 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200). It features dual-channel DDR4 memory technology for up to 128GB of memory, Intel® Turbo Boost Max 3.0, and Intel® K-Series unlocked CPUs. Get excellent performance with PCIe 4.0, USB 3.2, and 2.5GbE LAN.

Supported Processors	- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200) - Digi Power design - 14 Power Phase design - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® K-Series unlocked CPUs
Chipset	Intel® Z590 Chipset
Socket	LGA1200
Memory Type	DDR4
Memory Slots	- 4 x DDR4 DIMM Slots
Maximum Memory	128GB
Memory Bus Speed	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - 11th Gen Intel® Core™ Processors support DDR4 non-ECC un-buffered memory up to 4800+(OC)* - 10th Gen Intel® Core™ Processors support DDR4 non-ECC un-buffered memory up to 4666+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB** - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots
Ports	- 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)* - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)* - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)* - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Form Factor	ATX
Expansion Slots	11th Gen Intel® Core™ Processors - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))* 10th Gen Intel® Core™ Processors - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))* - 3 x PCI Express 3.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) - 15μ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks
