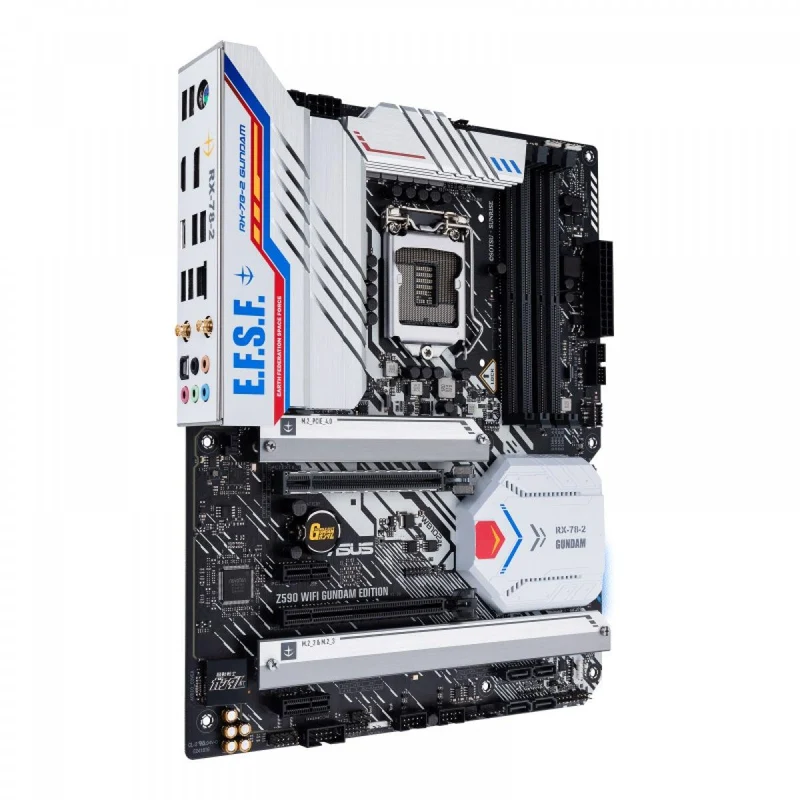

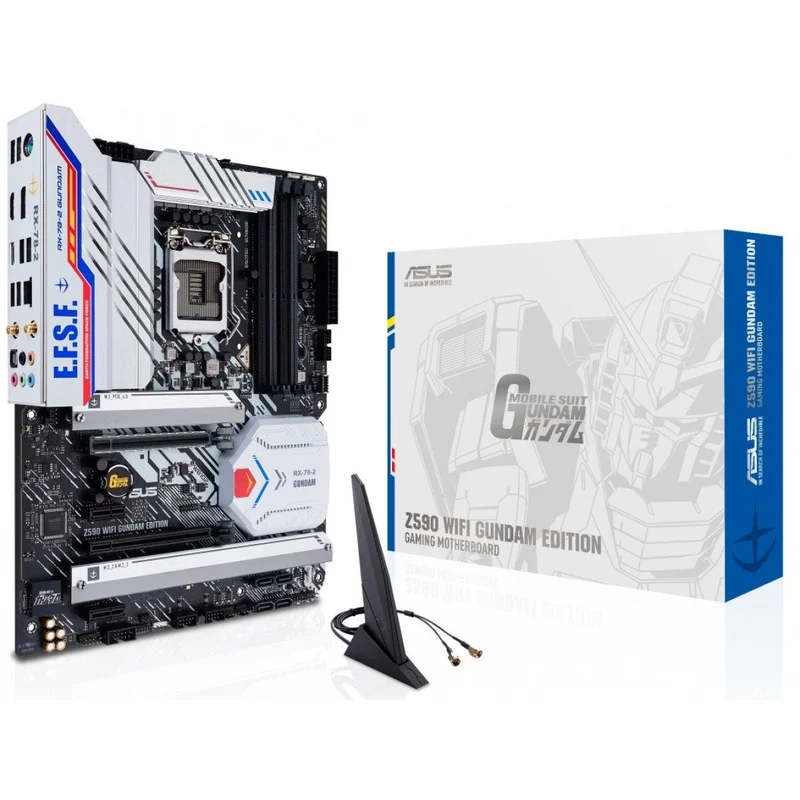

ASUS Z590 GUNDAM EDITION WiFi 6, (LGA 1200) ATX Gaming Motherboard, PCIe® 4.0, 3 X M.2 , USB 3.2 Gen 2x2 Type-C

Unlock extraordinary performance and gaming immersion with the ASUS Z590 GUNDAM EDITION WiFi 6 Motherboard. Designed with an LGA 1200 socket and compatible with 11th Gen Intel® Core™ processors & 10th Gen Intel® CoreTM Pentium® Gold and Celeron® Processors, this motherboard supports up to 5133MHz (OC) non-ECC DDR4 RAM and Intel® Extreme Memory Profile (XMP). Experience blazing fast data transfer speeds with PCIe® 4.0 and USB 3.2 Gen 2x2 Type-C ports. Elevate your gaming experience today.

Supported Processors	Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™ Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset	Intel® Z590 Chipset
Socket	LGA1200
Memory Type	DDR4
Memory Slots	4 SLOTS: 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists) and memory frequency support depends on the CPU types.
Maximum Memory	128GB
Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x ASUS Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port
Form Factor	ATX
Expansion Slots	1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4) Intel® 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot* - Intel® 11th processors support PCIe 4.0 x16 - Intel®10th processors support PCIe 3.0 x16 Intel® Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports PCIe bandwidth bifurcation for RAID on CPU function. * Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.
