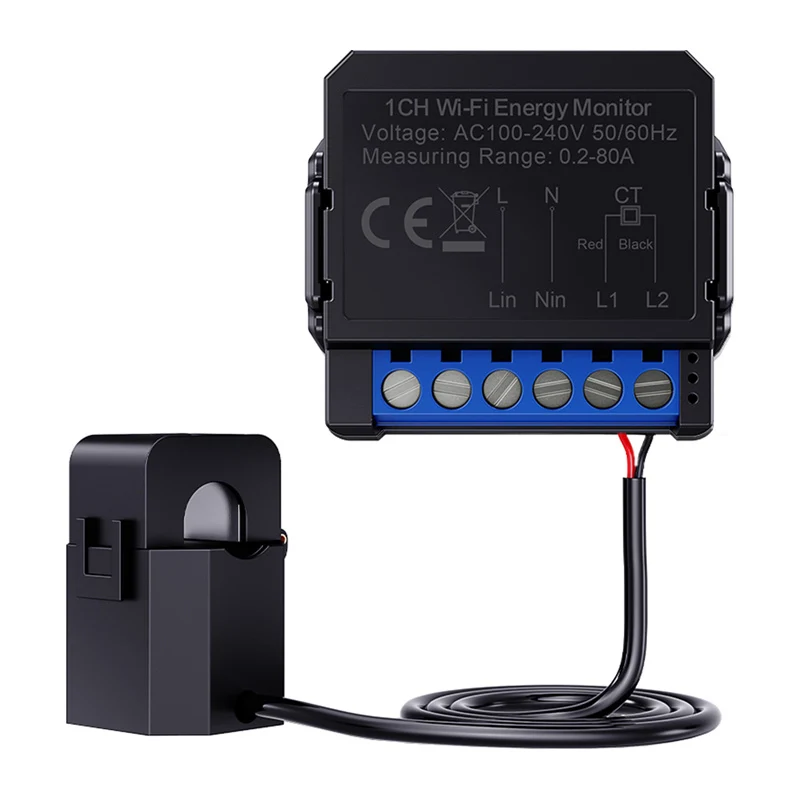

Avatto WiFi WPM16-1 smart bi-directional energy meter

Avatto WiFi WPM16-1 smart two-way energy meter

The Avatto WiFi WPM16-1 smart two-way energy meter allows you to monitor your power consumption and production in real time. With a Wi-Fi connection, you'll get access to accurate hourly, daily, monthly and yearly statistics directly in the app, making it easy to analyze and plan savings for your home or office.

Accurate measurement and convenient operation

The Avatto WPM16-1 supports measurement from 0.2 to 80 amps and works with single-phase 100-240-volt installations. The precise CT sensor guarantees reliable results, and the data automatically synchronizes with the app for quick viewing of current and total energy consumption.

Compact form, easy installation

The device has compact dimensions, so it will easily fit into the switchboard. Installation is reduced to connecting the wires according to the markings. Robust housing made of flame-retardant PC plastic ensures safety and long life of the device.

Included

• Avatto WiFi smart energy meter WPM16-1
• CT current sensor
• User manual

Manufacturer	Avatto
Model	WPM16-1
Type	single-phase
Operating voltage	AC 100-240 V (50/60 Hz)
Measuring range	0,2-80 A
Communication	Wi-Fi
Measurement type	Bidirectional (energy consumption and production)
Module dimensions	38.8 × 38.5 × 40 mm
CT sensor dimensions	25.6 × 40 mm
Housing material	PC flame retardant
Data in the application	Hourly, daily, monthly, annual and total (kWh) measurement
