Big Ackerman Chassis 4WD Drive Robot Car Unmanned Vehicle High-Precision GMR Encoder Motor RC Tank Programmable Robot DIY Kit

Big Ackerman Chassis 4WD Drive Robot Car Unmanned Vehicle High-Precision GMR Encoder Motor RC Tank Programmable Robot DIY Kittion

Features:

• Title: Ackerman chassis series, intelligent trolley chassis, unmanned vehicles, high-precision GMR encoder motors, four-wheel drive electric




  Product parameters：

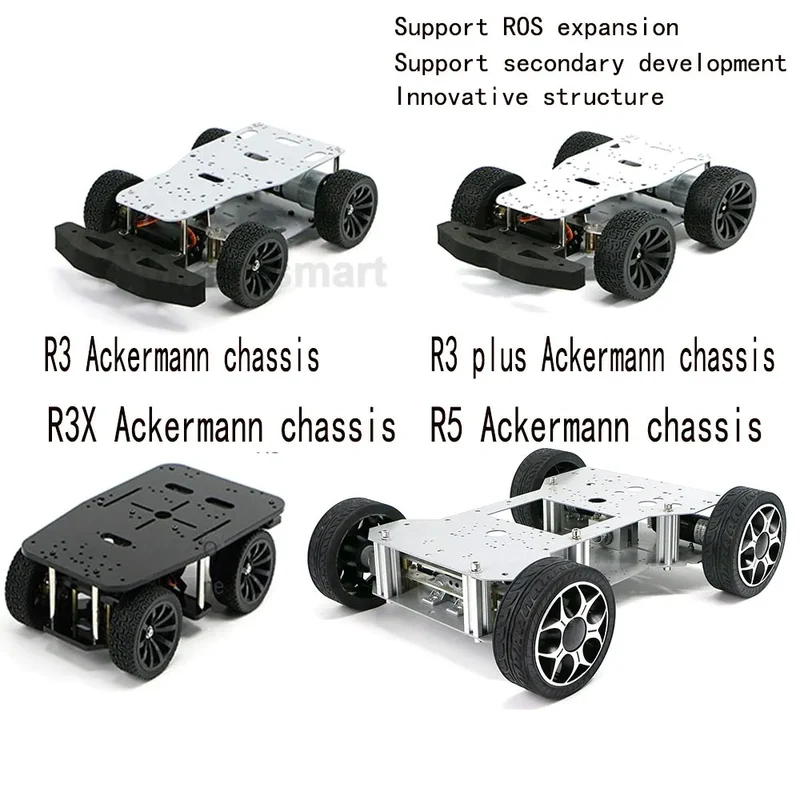

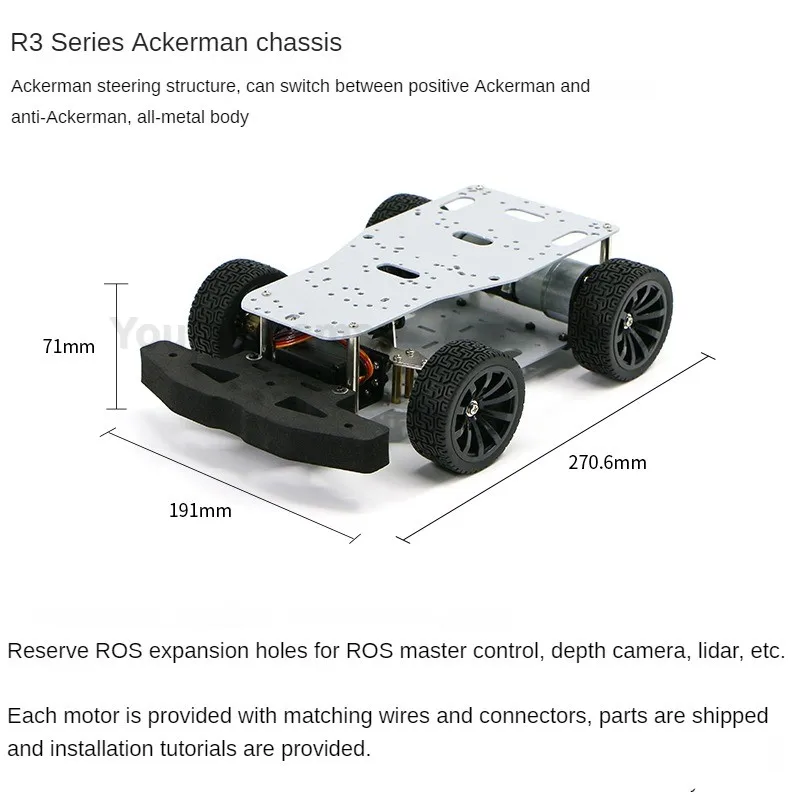

  Trolley chassis: R3 series

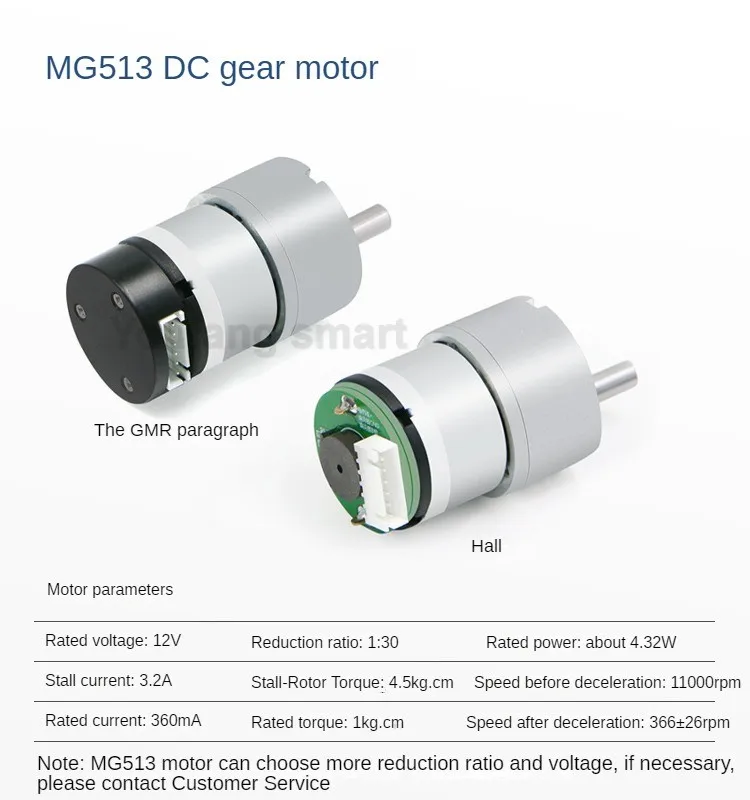

  Motor model: MG513

  Reduction ratio: 1:30

  Load capacity: 3kg

  Maximum speed: 1.2m/s

  Self-weight: 1.3kg

  Size: 270.6*191*71mm

  Wheels: 65mm rubber wheels

  Shock absorption system: Not equipped

  Servo model: S20F20kg high torque digital servo

  Drive structure: classic car model, rear wheel differential drive, front wheel servo steering

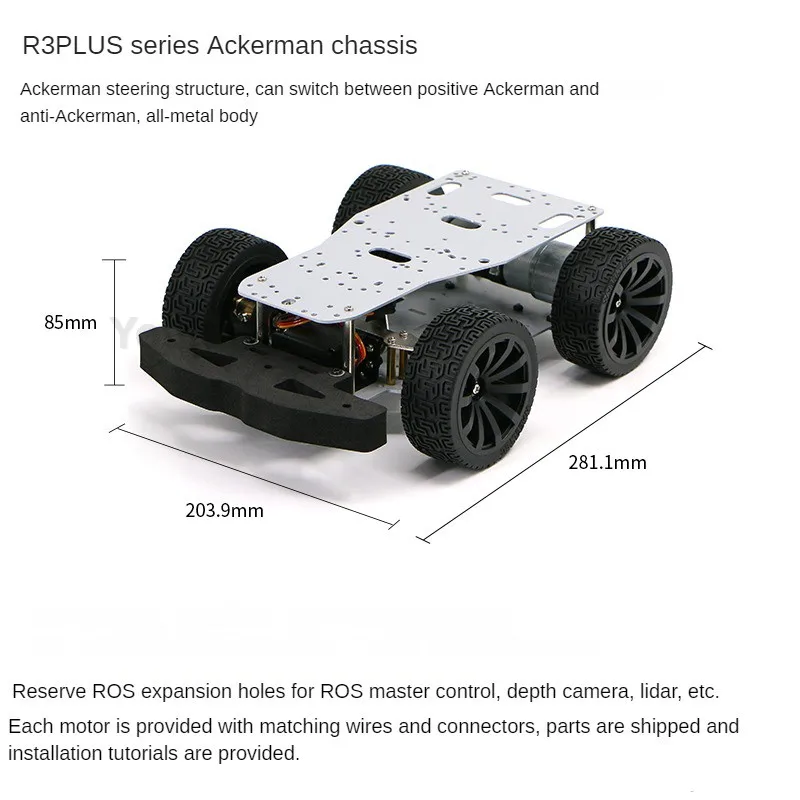

  Trolley chassis: R3 PLUS series

  Motor model: MG513

  Reduction ratio: 1:30

  Load capacity: 2.29kg

  Maximum speed: 1.56m/s

  Self-weight: 2.3kg

  Size: 281.1*203.9*85mm

  Wheels: 85mm rubber wheels

  Shock absorption system: Not equipped

  Servo model: S20F20kg high torque digital servo

  Drive structure: classic car model, rear wheel differential drive, front wheel servo steering

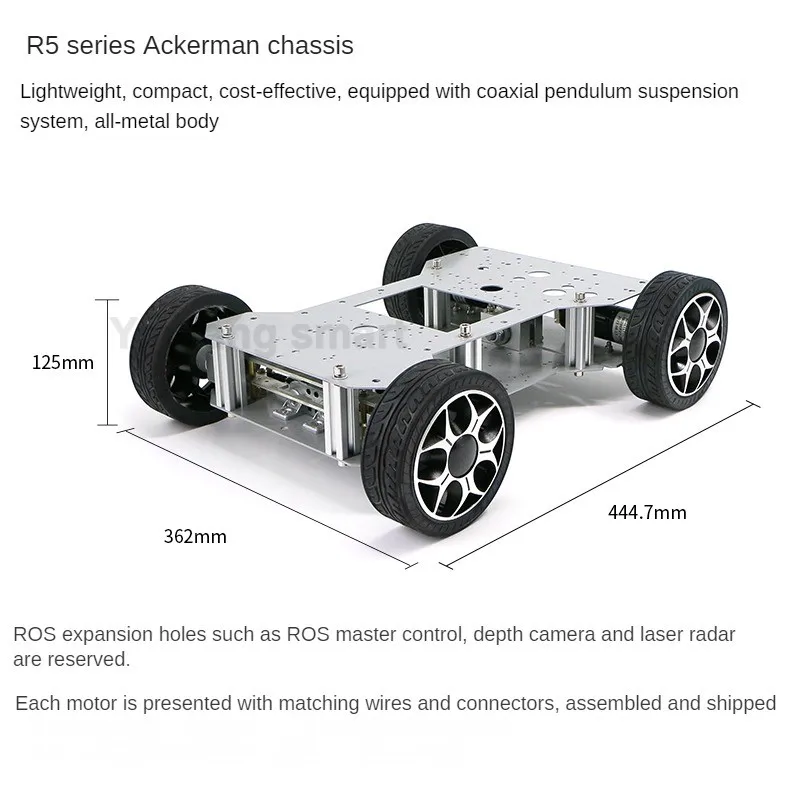

  Trolley chassis: R5 series

  Motor model: MD36

  Reduction ratio: 1:27

  Load capacity: 10kg

  Maximum speed: 1.3m/s

  Self-weight: 6.2kg

  Size: 444.7*362*125mm

  Wheels: 125mm cast aluminum-rubber wheels

  Shock absorption system: Equipped with a coaxial pendulum suspension to adapt to uneven ground

  Servo model: S20F20kg high torque digital servo

  Drive structure: classic car model, rear wheel differential drive, front wheel servo steering

Note:

1.R3 and R3 plus car is unassembled, we will offer the installation manual.Please leave your email address

2.Due to the customs policy, the product is mailed without a battery
