Product Description Nexbit is AI smart robot car powered by micro:bit.
It boasts an impressive array of features within its compact body,
including a high-precision 4-channel knob line follower, an AI vision
module, a glowy ultrasonic sensor, an infrared receiver, RGB lights, and
other electronic components. With these modules, Nexbit can perform
fundamental tasks such as intersection detection, autonomous line
following, and obstacle detection and avoidance. Moreover, it's equipped
to handle more complex tasks like road sign recognition, autonomous
driving, face recognition, and a wide range of AI games. Nexbit also
provides multiple servo and sensor ports, allowing seamless project
expansion. Gold-Plated Exquisite Body Nexbit's PCB board is crafted with gold
plating, showcasing an exquisite gold-black appearance. The compact body
includes a glowy ultrasonic sensor, 4-channel line follower, RGB
lights, and other components. Furthermore, it is user-friendly for

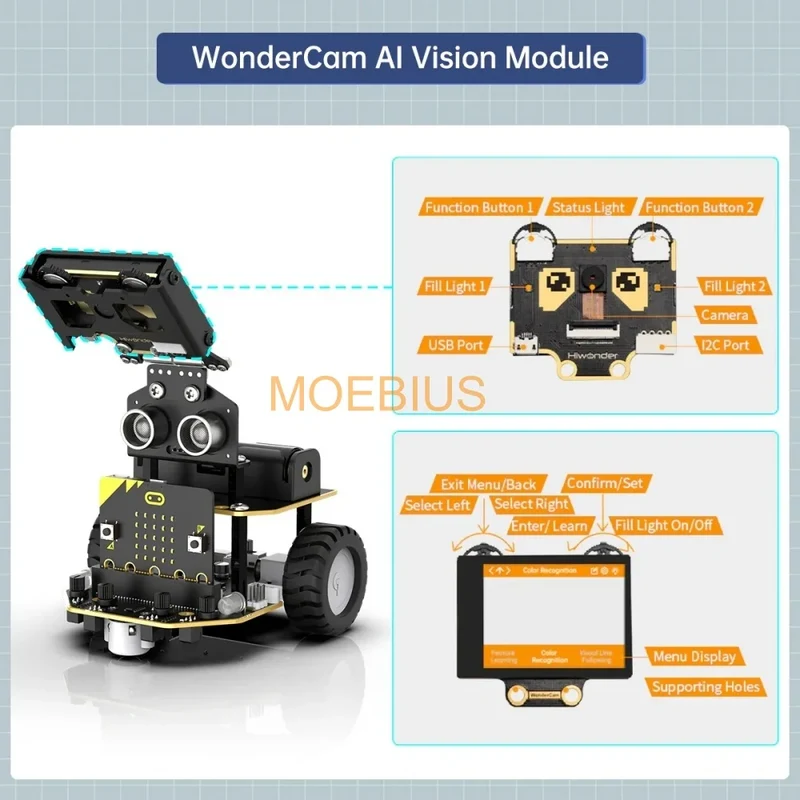

wiring and assembly. AI Vision HD Camera Nexbit features a high-performance
WonderCam AI vision module with an integrated HD camera. This module
enables various AI applications, including color recognition, vision
line following, target tracking, and more. Adjustable Sensitivity Knobs The sensor employs a micro high-precision
infrared probes and adjustable sensitivity knobs spanning a 150° range.
This feature enables Nexbit to carry out complex line following mission. Diverse Models Adjustable Angle Nexbit includes a hinge bracket that allows users to adjust the angle of the vision module, expanding the exploration range. One-click Training and Learning for Limitless AI Creativity Nexbit's AI vision module is integrated with some
learning algorithms, allowing it to complete diverse AI vision projects

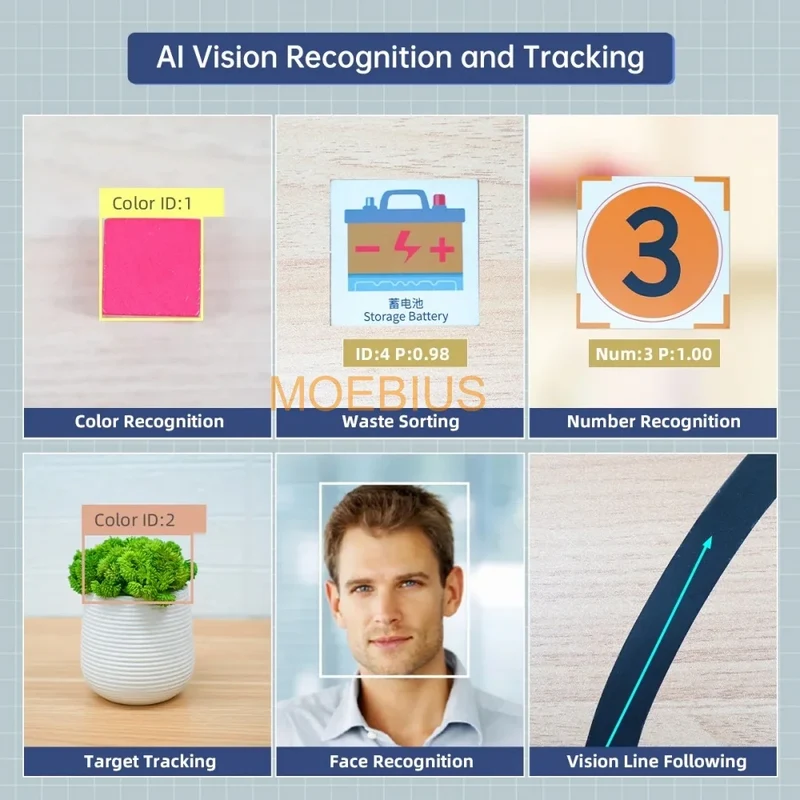

such as color recognition and vision line following. AI Intelligent Recognition

Color Recognition

Nexbit can identify the color of items through WonderCam, and once recognized, the item will be framed on the screen.

Number Recognition

Empowered by the WonderCam AI vision module, Nexbit can accurately recognize numbers and frame them on the screen.

Face Recognition

Nexbit's WonderCam detects face and identifies if it matches according to conditions and image on its display.

Waste Sorting

Using WonderCam AI vision module,
Nexbit can recognize distinct waste cards and display the corresponding
patterns on the LED matrix of the micro:bit.

AI Vision Target Tracking AI Autonomous Driving Simulation Road Sign Recognition Through the WonderCam AI vision module,
Nexbit can recognize different road sign patterns in the screen and
perform corresponding data analysis, ultimately realizing road sign
recognition functions such as straight lines, turns, and U-turns. Traffic Light Recognition Using WonderCam AI vision module, Nexbit can recognize the traffic light to determine its maneuvers. Various Control Methods Android/ iOS APP control Through the APP, we can learn how to
assemble robots, realize body remote control, and experience a variety
of AI intelligent gameplay. Handlebit Remote Control Nexbit supports remote control through Handlebit providing convenient and enjoyable operating experience. Ranging and Obstacle Avoidance Based on Glowy Ultrasonic Sensor Distance Measurement Obstacle Avoidance

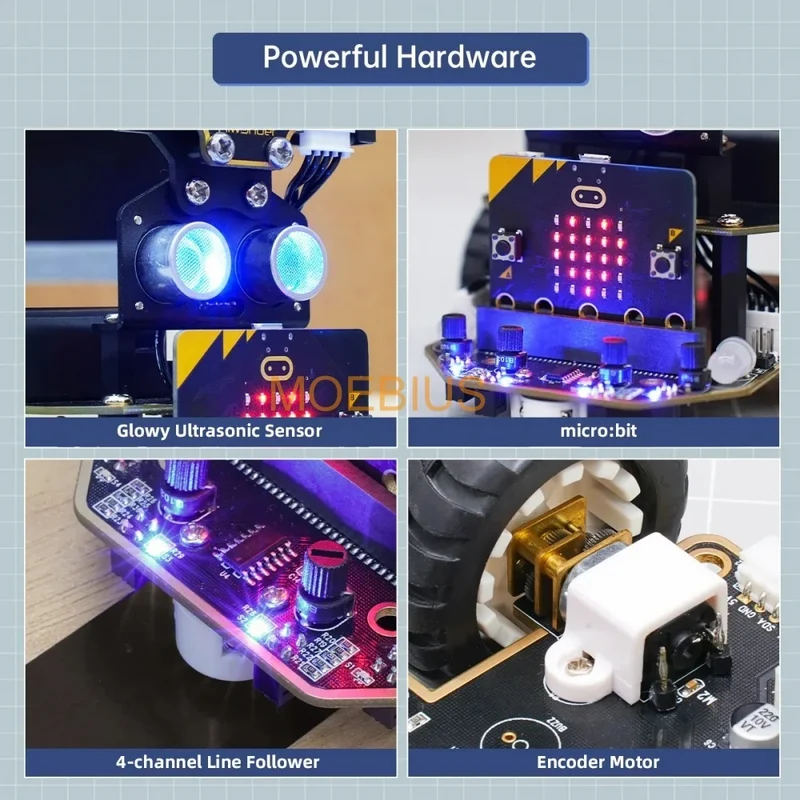

Glowy Ultrasonic Sensor

Equipped with a glowy ultrasonic
sensor, Nexbit can be programm-ed to measure distances and emit various
colors of light for real-time feedback.

Onboard Lithium Battery

The robot car is powered by a
1800mAh LiPo battery, offering an extended service life. Additionally,
it includes a USB port for convenient charging, allowing users to charge
it safely.

Mini High-Torque Geared Motor

Nexbit features a high-torque
geared motor, ensuring an elegant appearance, exceptional durability,
and a robust drive for the robot.

Ample Expansion Ports

Nexbit’s base board is equipped
with multiple IIC ports, GPIO ports and 4PIN ports facilitating seamless
expansion and easy wiring.

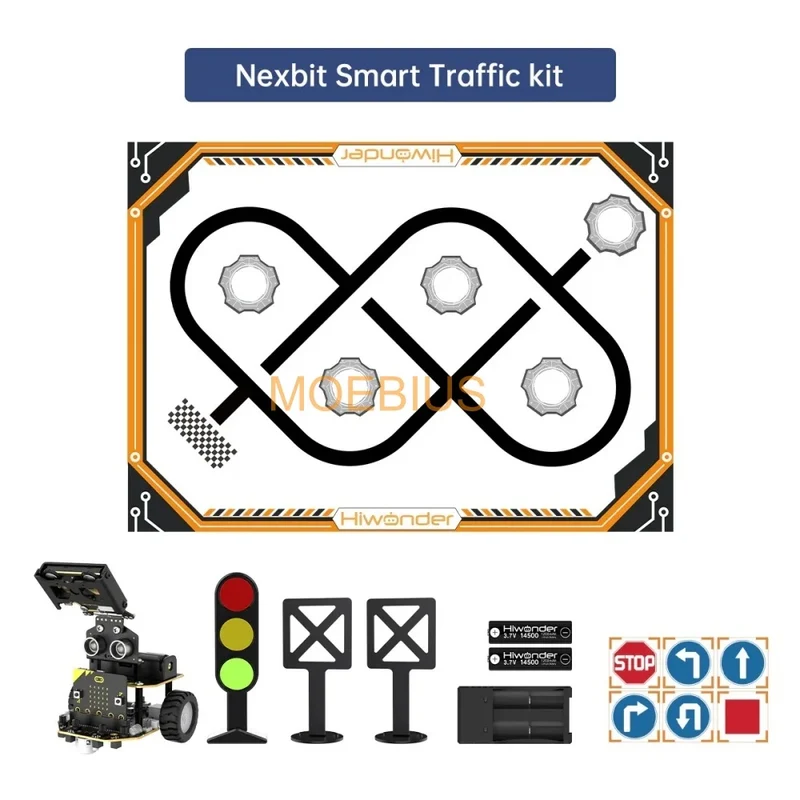

Support Expansion Unlimited Creativity Sensor Expansion Gripper Expansion Smart Traffic Kit & Intelligent Transportation Kit
Nexbit smart traffic kit is an AI intelligent
traffic demonstration platform combing Nexbit robot and traffic
scenarios. Through micro:bit programming, Nexbit can carry out traffic
light recognition, road sign recognition and intersection judgment.

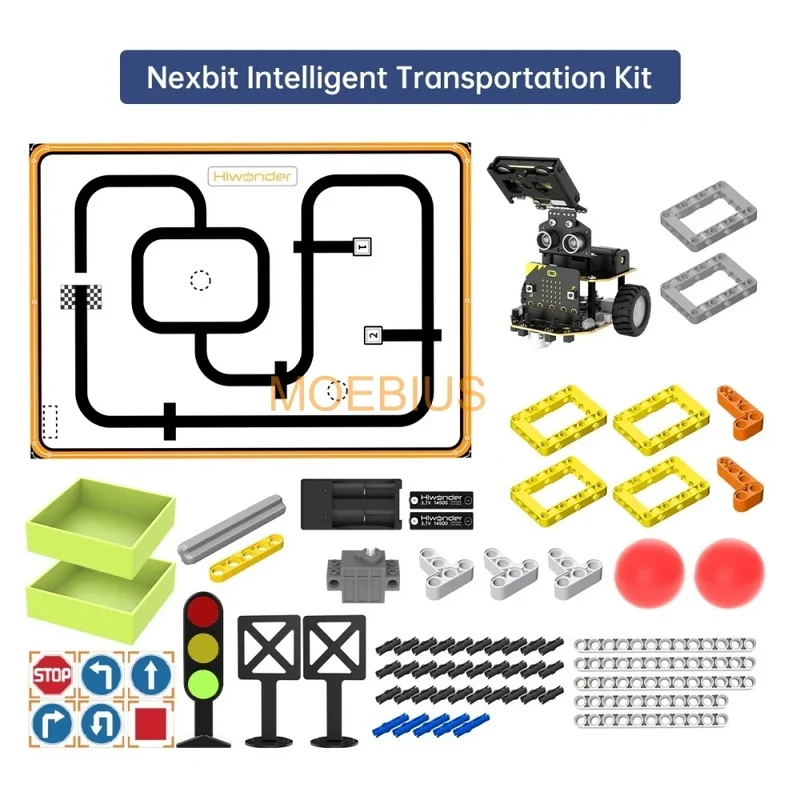

The Nexbit intelligent transportation kit is an AI
intelligent transportation demonstration platform that combines Nexbit
robots with object transportation scenarios. Through micro:bit
programming, Nexbit can perform traffic light recognition, road sign
recognition, intersection judgment and autonomous transportation.

Road Sign Recognition

Number Recognition

Autonomous Transportation

Intersection Judgment

Product size	99*105*150mm
Product weight	about 245g
Material	metal bracket
Controller	micro:bit V2
Display	2.0-inch LCD screen with resolution of 320*240
Programming software	micro:bit+ iOS/ Android APP
Output	RGB light, buzzer, servo port, llC port, GPIO port and 5*5 LDE matrix
Input	4-channel line follower, glowy ultrasonic sensor, infrared receiver and WonderCam vision module
Power supply	1* 1800mAh 18650 LiPo battery
Control method	mobile APP control, handle control
Protection method	overcurrent protection, low voltage protection

Product Parameters Dimensional Diagram

Processor	Kendryte K210
Camera	2 megapixel
Supply voltage	5.0V
Working current	300mA (Typical working condition: facial recognition,100% backlight, fill light off)
Connectors	I2C
Display	2.0IPS, resolution 320x240
Built-in function	Facial recognition, image classification, feature learning, color recognition, vision line following, tag recognition, number recognition and landmark recognition.
Dimension	52mmx50mm
Display dimension	41mmx31mm

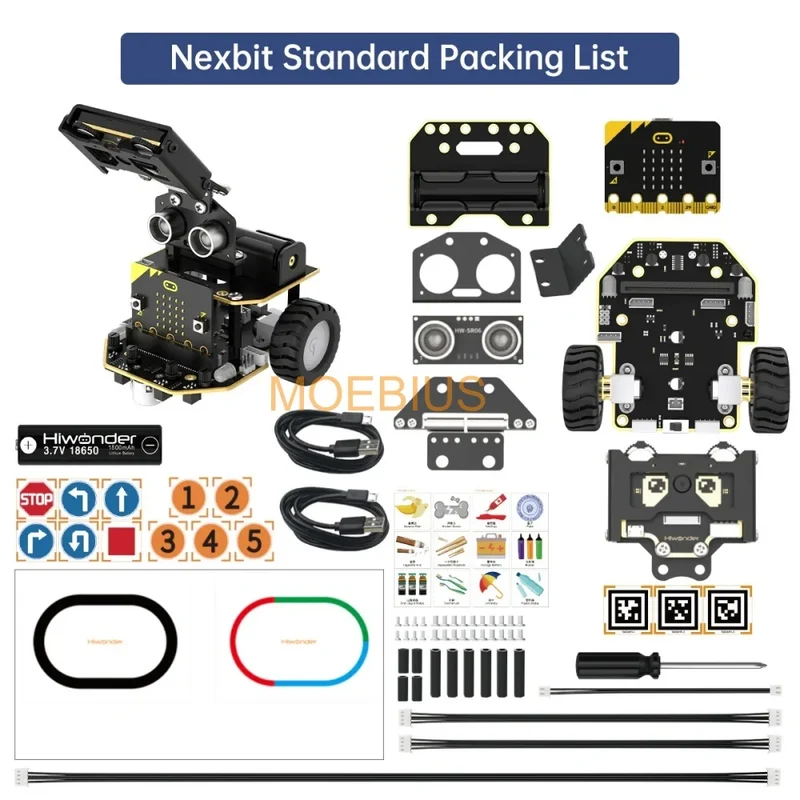

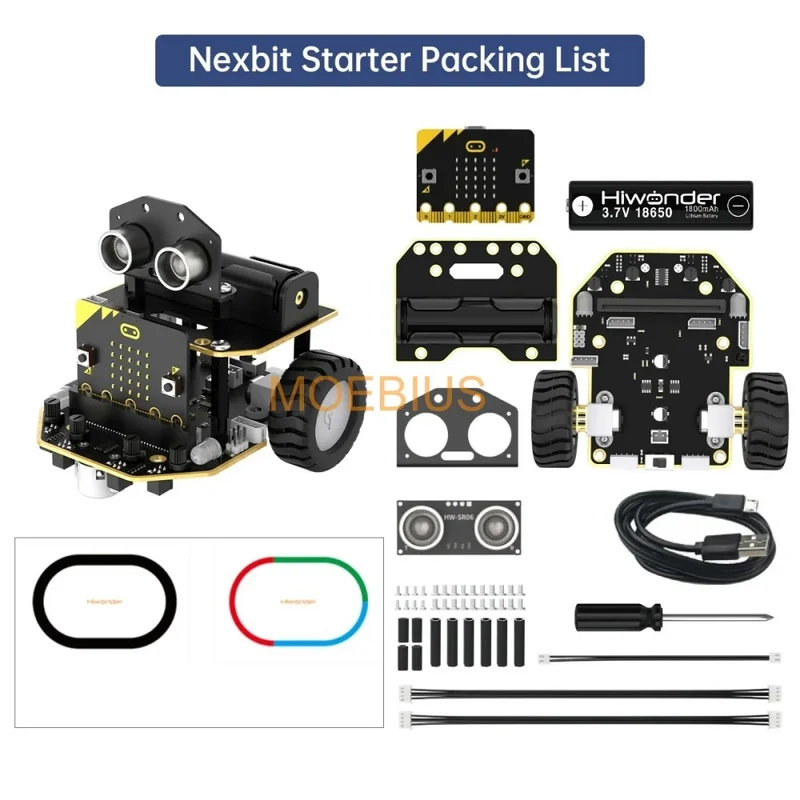

WonderCam Vision Module Parameters WonderCam Vision Module Nexbit Starter Packing List Nexbit Standard Packing List
