Industrial Cobot Collaborative Robotic Articulated Intelligent Collaborative Industrial Robot 6 Axis

Industrial Cobot Collaborative Robotic Articulated Intelligent Collaborative Industrial Robot 6 Axis

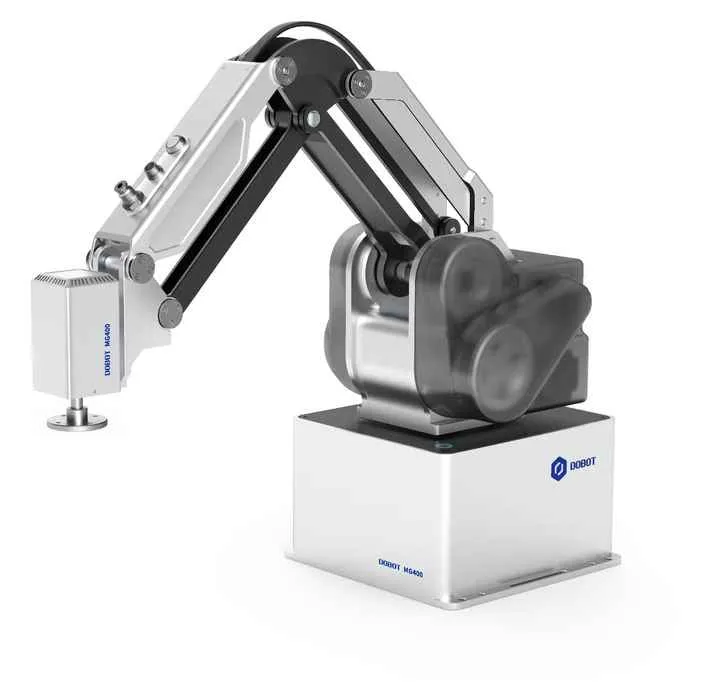

Collaborative Robotic Arm Category: Industrial robot arm /Collaborative robot arm / Electric gripper/Intelligent actuator/Automation solutions Application:DOBOT MG400 is a space saving lightweight desktop robot with a footprint smaller than a piece of A4 paper.Designed to be simple in all dimensions, MG400 is a perfect fit for repeating lightweight tasks and automated workbench scenarios in tight workspaces that requires fast deployment and changeover.

Specification Parameter

Simplicity boosts Productivity MG400 is easy to re-deploy into multiple applications without changing the production layout. By simply plug-in and play after moving it to new production processes, MG400 gives businesses the agility to automate almost any manual task, including those with small batches or fast change-overs. With our software and technology, It can accurately emulate human actions by demonstrating the path with your hands. No programming skills are required. In addition, MG400 can re-use programs for recurrent tasks. Precise Performance & Industrial-standard Parts
MG400 is equipped with quality, reliable and safe mechanical components such as DOBOT IR&D servo motors, controller and high-precision absolute encoder. With these features, MG400’s repeatability is boosted up to 0.05mm. Moreover, with the vibration suppression algorithm in the controller and ensured trajectory accuracy of multi-axis motion, the repeatability bandwidth stabilization time is accelerated by 60%, and the residual vibration by 70%. These made the desktop collaborative robot fast and smooth and performed with the exact precision businesses ever want.
Low Startup Cost & Fast Return On Investment
Generally, businesses might be skeptical about involving automation in production processes for the first time. MG400 costs just one-third of a traditional industrial robot that could effectively lower the startup costs and operating costs for businesses. MG400 is a lasting long-term solution that provides you with new growth opportunities as well as increase productivity. In the long run, automation can create substantial profit margins and offers a quick return on investment.

Name		MG400
Model		DT-MG400-4R075-01
Number of Axes		4
Effective Payload (kg)		0.5
Max. Reach		440 mm
Repeatability		0.05mm
Joint Ranges	J1	160°
	J2	-25°~85°
	J3	-25°~105°
	J4	-25°~105°
Joint Maximum Speed	J1	300°/s
	J2	300°/s
	J3	300°/s
	J4	300°/s
Power		100~240 V AC, 50/60 Hz
Rated Voltage		48V
Rated Power		150W
Communication Mode		TCP/IP, Modbus TCP， EtherCAT, Wireless Network
Installation		Desktop
Weight		8 kg
Footprint		190mm 190mm
Environment		0 ℃ ~40 ℃
Software		Dobot Vision Studio, Dobot SC Studio,Dobot Studio 2020
