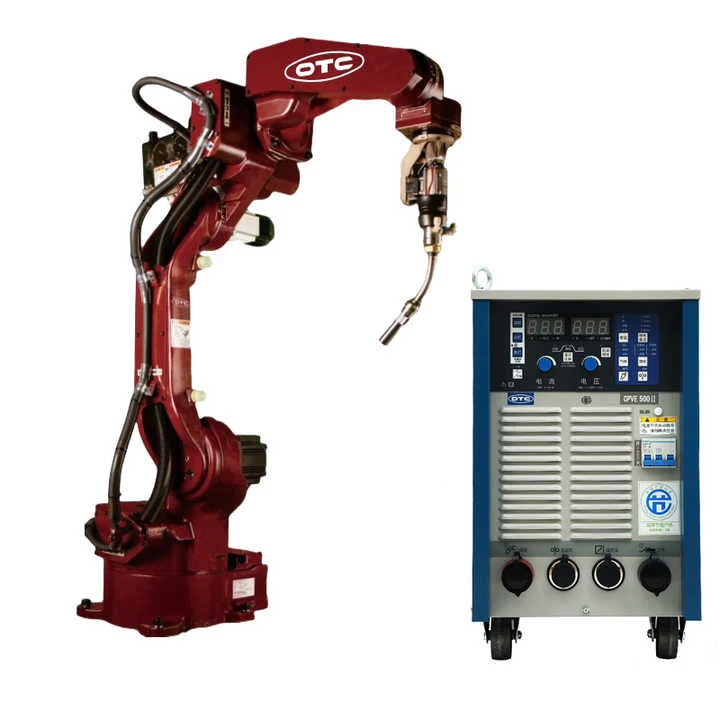

Japan Brand Simple Operation Multi-Functional Automatic O/T/C FD-B1445 1.4m Arm Welding Robot

Japan Brand Simple Operation Multi-Functional Automatic O/T/C FD-B1445 1.4m Arm Welding Robot

iption Specification

Construction		Vertical polyarticular type
Number of axes		6
Set reduplication precision		+/-0.08mm(Note 1)
Drive system		Ac servo motor
Driving energy		2900W
Set feed-back		Absolute value encoder
Range of action	arm	J1(rotation)	+/-170°(+/-50°)(Note 2)
		J2(front and rear)	-155°~ +90°(Note 3)
		J3(top and bottom)	-170°~ +245°(Note 4)
	wrist	J4(rotation)	+/- 155°(+/- 170°)(Note 5)
		J5(Swing)	-45°~ +225°(Note 6)
		J6(Twist)	+/- 205° (+/- 360°)(Note 5、6)
Maximum speed	arm	J1(rotation)	2.97 rad/s {170°/s}(2.27 rad/s {130°/s})(Note 2)
		J2(front and rear)	2.97 rad/s {170°/s}
		J3(top and bottom)	2.97 rad/s {170°/s}
	wrist	J4(rotation)	4.89 rad/s {280°/s}
		J5(Swing)	4.19 rad/s {240°/s}
		J6(Twist)	9.08 rad/s {520°/s}
Wrist allows load	Moment of force	J4(rotation)	10.1 N·㎡
		J5(Swing)	10.1 N·㎡
		J6(Twist)	2.9 N·㎡
	Moment of inertia	J4(rotation)	0.38 kg·㎡
		J5(Swing)	0.38 kg·㎡
		J6(Twist)	0.03 kg·㎡
The machine and the man act as the model			3.57 ㎡ x 340°
Make use of environmental conditions			Temperature: 0 ~ 45℃, humidity: 20 ~ 80%RH (no condensation)
Body weight			145 kg
Load capacity of upper arm			10 kg (Note 7)
Mounted square type			Ground, wall hanging, upside down
This body color			russet

Why Choose Us Packing & Delivery FAQ 1. who are we?
We are based in Hubei, China, start from 2018,sell to North America(30.00%),Eastern Europe(30.00%),Southern
Europe(20.00%),Africa(10.00%),Domestic Market(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
TIG welding machine,Laser welding machine,Gas-bonded Gas welding machine,Welding robots,Welding torch

4. why should you buy from us not from other suppliers?
Wuhan Jinda Welding Technology Co., Ltd. is mainly engaged in the sales and service of high-end welding machines and robots and
their accessories.Agent brands are Panasonic,OTC/Daihen,Beijing Time welder

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union;
