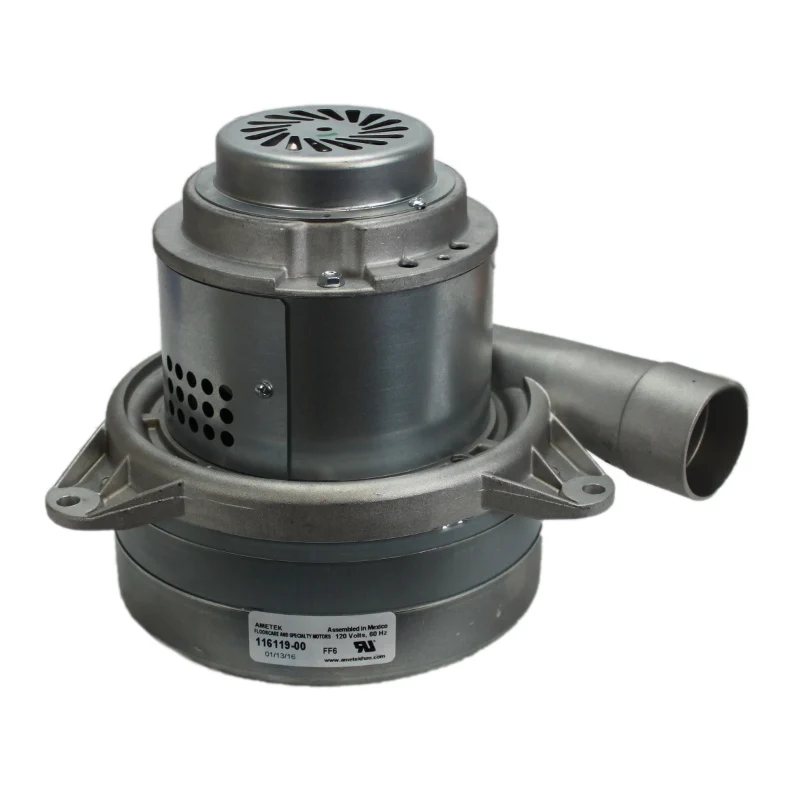

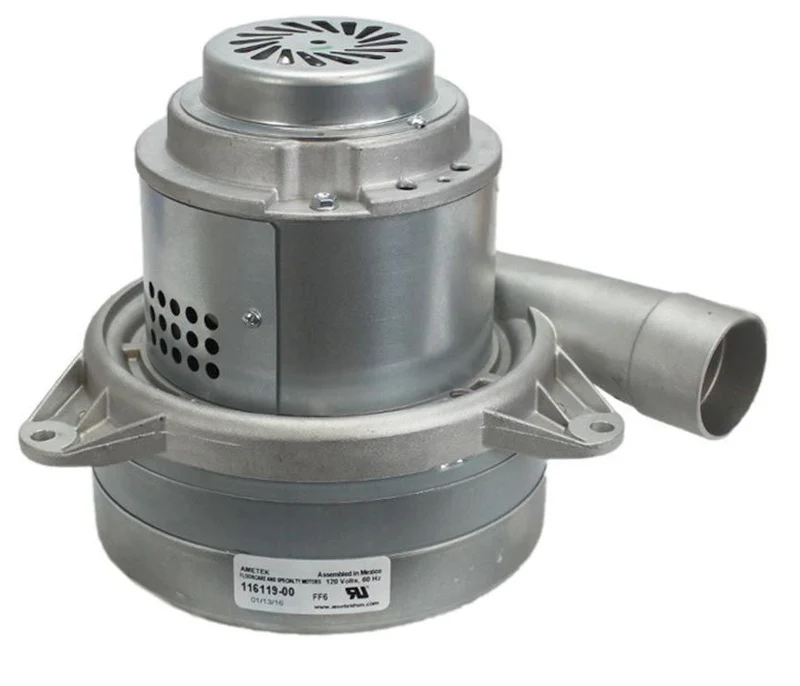

Lamb Ametek 116119-00 - 3 Stage Motor with Tangential Bypass, 7.2" Body Diameter and 120 Voltage

This motor is a 7.2", 120 volt, B/B, 3 stage, Tangential motor. Metal. It handles a maximum speed of 17,900 RPM. Accepts 120 VAC electrical connections. Motor fits vacuums that accept a 7.2" motor. You can use 33415-4 for the carbon brush. Motor 7.2" 120 Volt Ball/Ball 3-Stage Tangential Bypass. This motor also replaces 116103, 116264, 140240

Motor/Blower Type: Bypass
Discharge: Tangential Bypass
Blower Stages: 3
No. of Speeds: 1
Motor Enclosure Design: Open Dripproof
CFM @ 2-In. Orifice 94.0
Vacuum (H2O Sealed) 134.0
Voltage: 120
Hz: 60/50
Phase: 1
Max. Amps: 12.6
Max. Air Watts: 438
Motor Mounting Type: Lug
Motor Design: Universal AC/DC
Motor Mounting Position: All Angle
Motor Thermal Protection: None
Ins: Class A
Bearings: Ball
Ambient Temperature: 40 Degrees C
Body Dia.: 7.2"
Overall Height: 7-23/32"
Mounting Brackets: Metal
Duty: Intermittent
Average Life: 700 hr.
Standards: UL Recognized (E47185), CSA Certified (LR31393)

Works with
ACV 135
ACV Heavy Duty
Beam 204
Beam 294
Beam 284
Beam 287S
Beam 287SP
Beam 287C
Black and Decker 820
Broan CV-30
Broan V30C
Brute Power Systems XB12119
Dust Care DCC1
Vacuqueen SD500
Wal Vac 450
Castex Magnum 1400 DV for rugs
