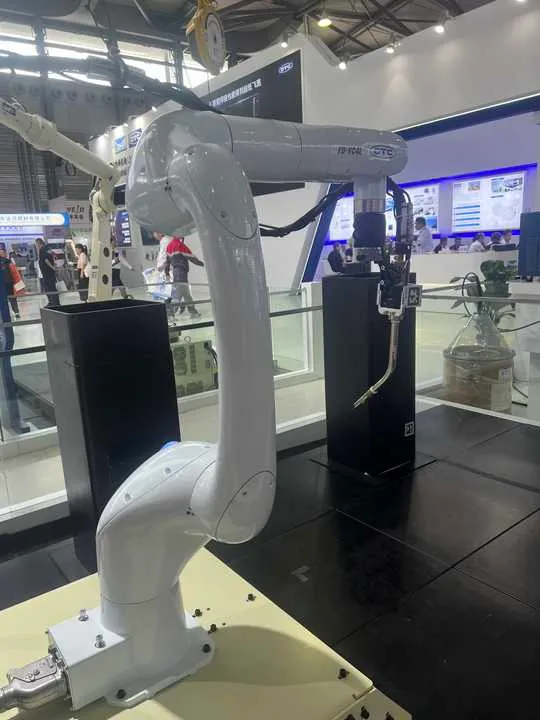

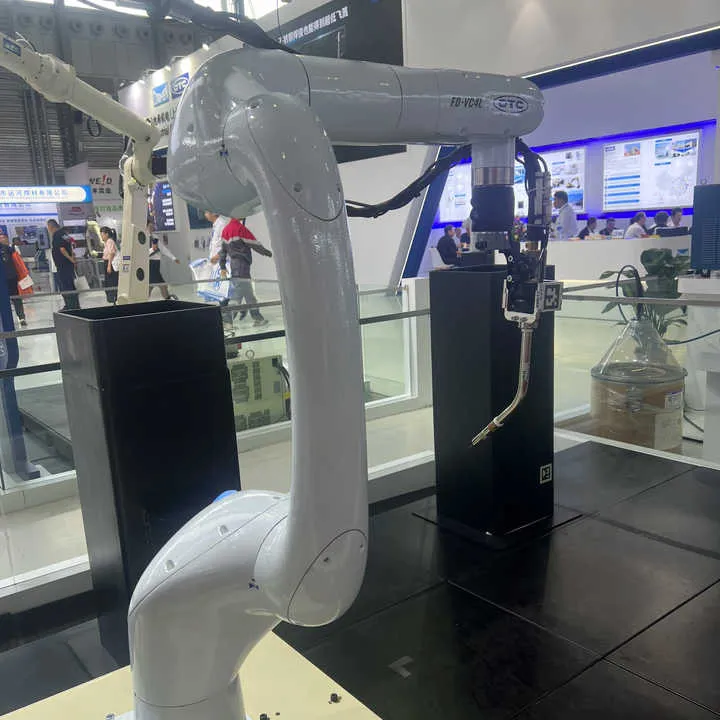

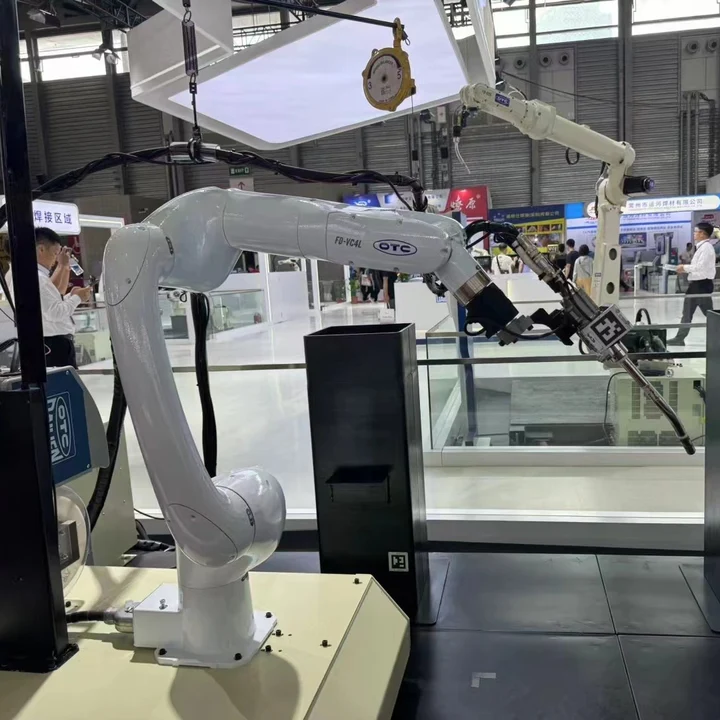

Optimum Collaborative Robot for Arc Welding New Welding Robot Arm Collaborative Robot With Simple Operation FD-VC4L

Optimum Collaborative Robot for Arc Welding New Welding Robot Arm Collaborative Robot With Simple Operation FD-VC4L

Specification

ltem			Specification
Model			NVC4L
Structure			Vertically articulated type
Number of Axes			6
Wrist Capacity			4 kg
Positional Repeatability			±0.04 mm (Note 1)
Drive Method			AC servo motor
Drive Capacity			1300 W
Position Feedback			Absolute encoder
Working range	Arm	J1 (Rotation)	±170°
		J2 (Front/Back)	-155°~+90°
		J3 (Up/Down)	-165°~+240°
	Wrist	J4 (Swing)	±170°
		J5 (Bending)	-30°~+210°
		J6(Twist)	±360°
Maximum Speed			1000mm/s (Note 2)
Wrist AllowableLoad	Allowable moment	J4 (Rotation)	13.0 N·m
		J5 (Bending)	13.0 N·m
		J6 (Twist)	4.4N·m
	Allowable Moment of lnertia	J4 (Rotation)	0.462 kg · m²
		J5 (Bending)	0.462 kg · m²
		J6 (Twist)	0.048 kg · m²
Arm Cross-section Area			3.04 m² x 340°
Environmental Conditions			RHTemp.: 0 to 45°C, Humidity: 20~80%RH (No-condensation)
Weight			47 kg
IP code			IP65
Installation method			Floor-mounted
Paint color			Alice Blue
