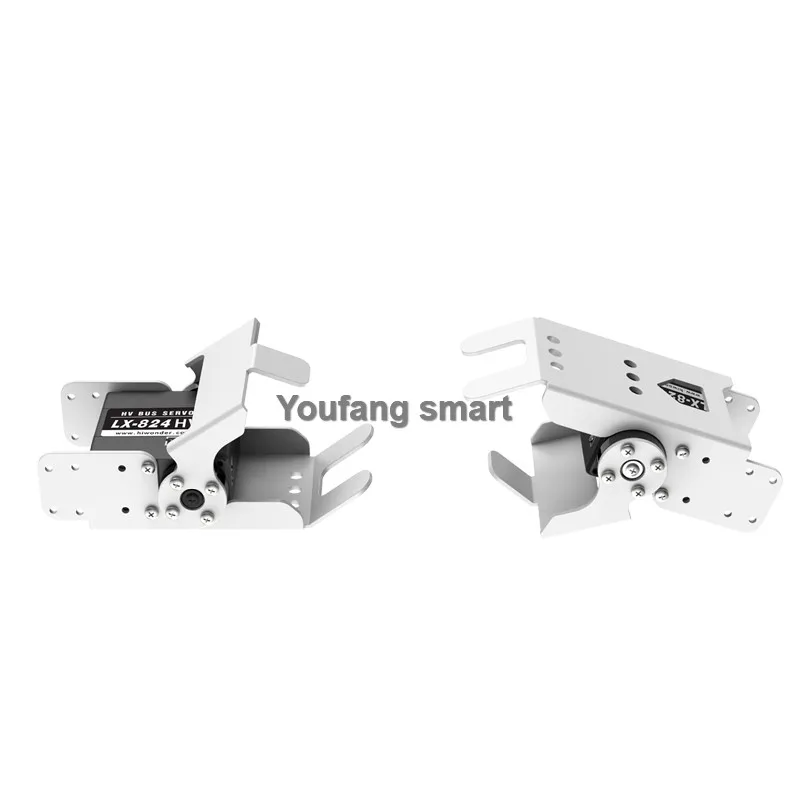

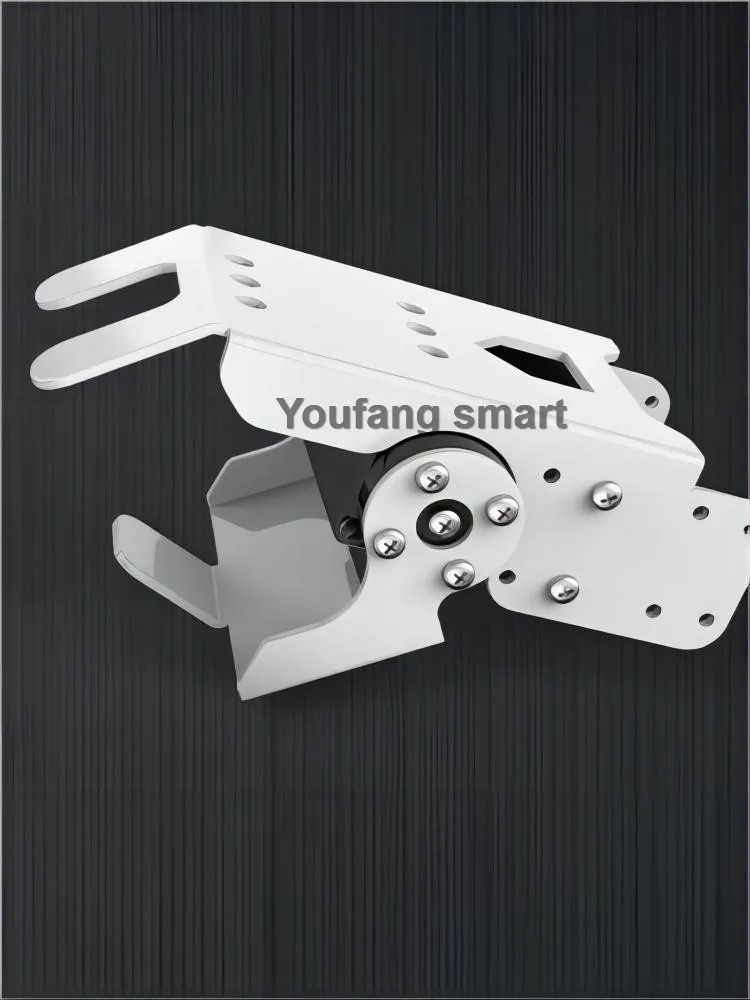

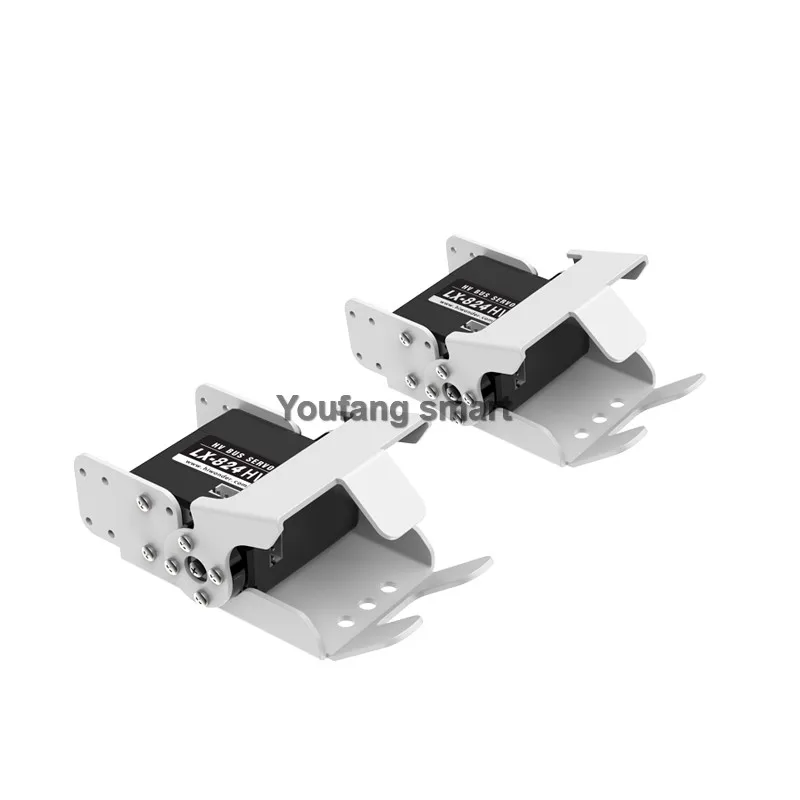

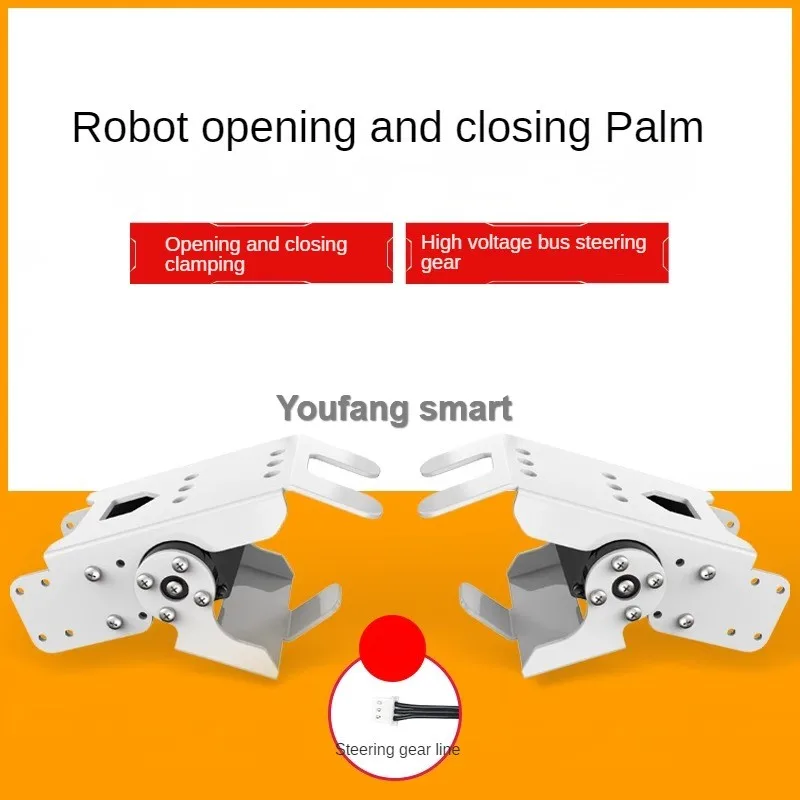

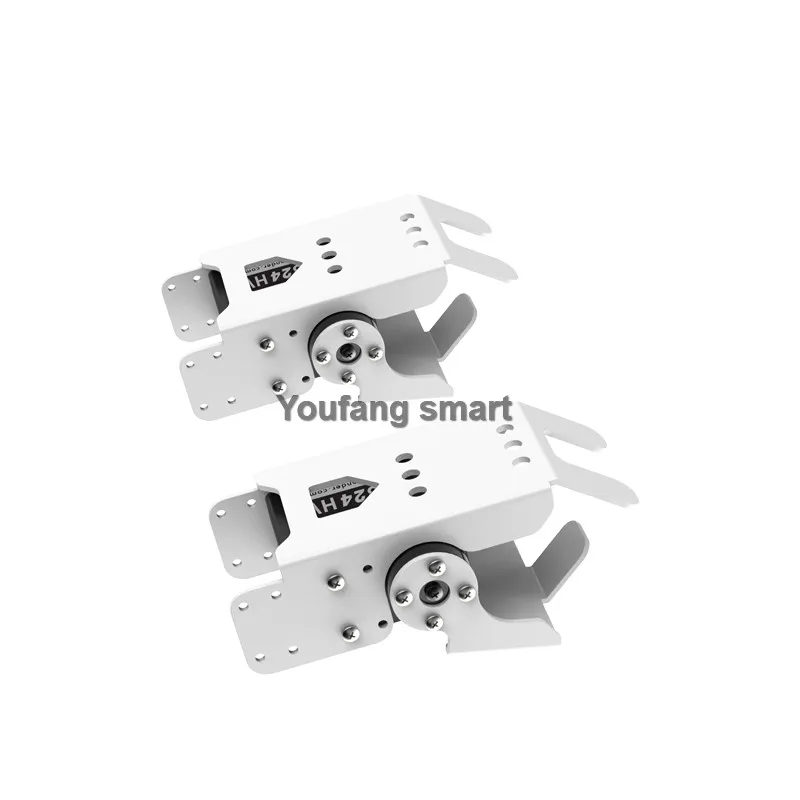

Robot Palm humanoid Robot Hand With Bus Servo Robot Arm Pick Close Grasping and Clamping for 17 Dof Robot Programmable Hand Kit

Robot Palm humanoid Robot Hand With Bus Servo Robot Arm Pick Close Grasping and Clamping for 17 Dof Robot Programmable Hand Kit

Title: Robot hand/Humanoid robot hand/adaptive bus steering gear/opening and closing grab clip/robot arm

Product parameter:

Material: aluminum-alloy bracket

Dimensions :95x54x56mm

Steering gear :LX-824HV high voltage bus steering gear

Single weight :91g

Product name :LX-824HV high voltage bus steering gear

Product weight: 57g

Product size :40mmx20.14mmx51.1mm

Operating voltage: 9-12.6V

Rotation speed: 0.20sec/60°11.1V

Lock torque :17kg.cm 11.1V

Rotation range: 0°~240°

No-load current: 100mA

Lock current: 1.7~2A

Steering gear accuracy: 0.3°

Control Angle range :0~1000, corresponding to 0~240°

Control mode: UART serial port command

Communication baud rate: 115200

Storage: Power failure saves user Settings

Rudder ID: 0~253 User configurable, default is 1

Read back function: Supports Angle read back

Protection: locked-rotor protection/over-temperature protection

Parameter feedback: temperature, voltage, position

Working mode: steering gear mode and gear motor mode

Gear type: metal teeth

Supporting line length :7cm

Connector model: PH2.0-3P Suitable for: all kinds of bionic robot joints

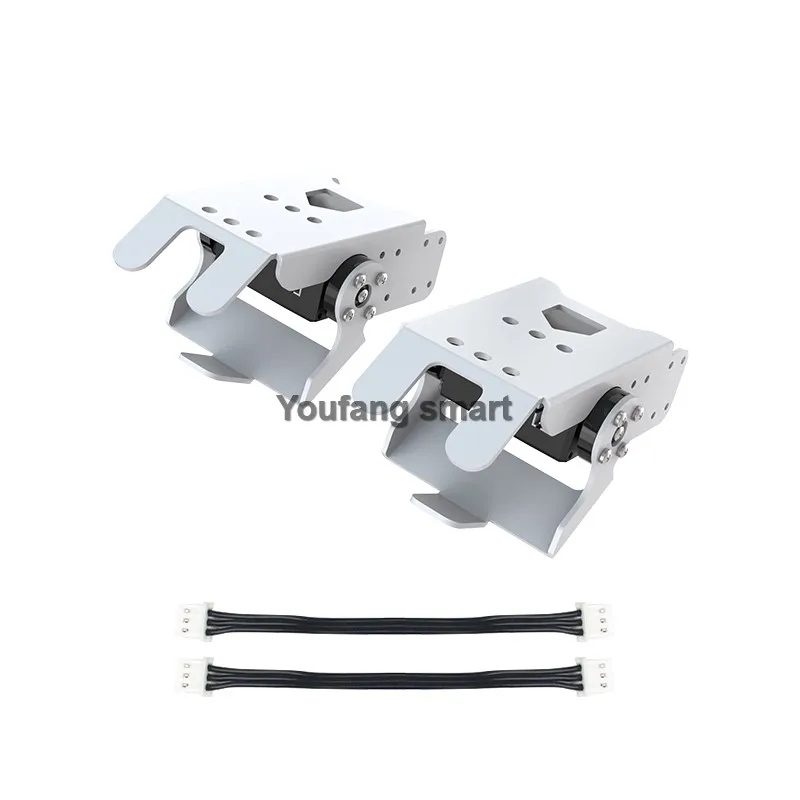

Shipping list

1 pair of Robotic hand

Steering line (7cm)

Note:

1.This is assembled, you do not need to assemble it, we provide tutorials for free，Please leave your email address
