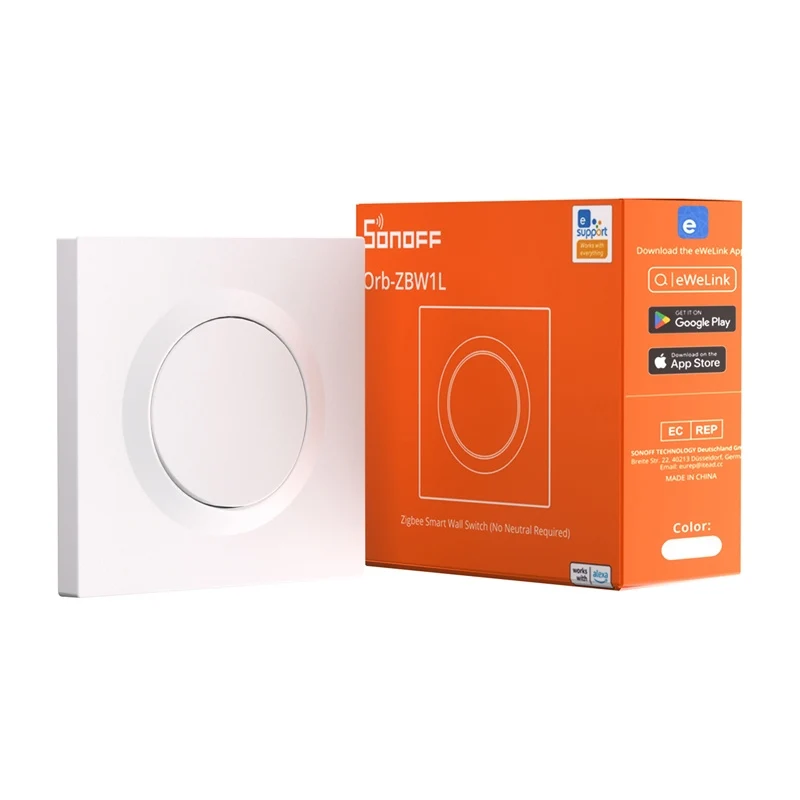

Smart SONOFF ZBMINIL2-E ZigBee wall switch

SONOFF ZBMINIL2-E ZigBee smart wall switch

Orb-ZBW1L is a wall switch from the Fusion series that works with ZigBee technology and does not require a neutral wire. This is a great option for older installations. With compatibility with popular ZigBee hubs, you can easily automate the lighting in your home without having to replace the entire electrical system. Thanks to its compatibility with Fusion series frames, it can be easily mounted vertically or horizontally - either individually or next to other devices. Fits standard boxes: round (⌀60 mm) and square (Type 86).

No neutral wire

Thanks to ZigBee technology and internal power supply from a single phase, Orb-ZBW1L is ideal for apartments and houses where there is no neutral wire in the box. Installation is quick and clean, without forging walls or running additional wires.

Works with popular smart home platforms

The device works with ZigBee hubs such as SONOFF ZBBridge-P/U, NSPanel Pro, iHost, SmartThings, Zigbee2MQTT, as well as Amazon Echo devices with built-in ZigBee hub (e.g. Echo 4th Generation, Echo Show 2nd Gen). This allows you to control the lights using Alexa, Google Home or the eWeLink app.

Smart scenes and group control

The switch can be easily integrated with wireless sensors and buttons. This allows you to create automations such as: the light turns on when a door is opened, when motion is detected in the hallway, or with one click before bedtime. In addition, the grouping function allows you to control multiple switches simultaneously from a single app.

Manufacturer	Sonoff
Product name	Orb-ZBW1L
Series	Fusion
Model	ZBMINIL2-E
Microcontroller (MCU)	EFR32MG22
Power supply	100-240V~, 50/60Hz, 6A (maximum resistive load)
LED load	Up to 150W at 100V / up to 300W at 240V
Maximum load	1440W
Minimum load	3W
Wireless connectivity	Zigbee 3.0
Weight	80 g
Dimensions	86 × 86 × 35.8 mm
Color	White
Housing material	PC plastic (polycarbonate)
Recommended wire diameter	16AWG to 14AWG (copper, solid or stranded wire only)
Application	For indoor use
Operating temperature range	From -10°C to 40°C
Operating humidity range	5-95% RH, non-condensing
