underwater Sewer Pipe Inspection Crawler Robot PTZ Camera For 200mm To 3500mm

 underwater Sewer Pipe Inspection Crawler Robot PTZ Camera For 200mm To 3500mm

 ptz crawler robot for pipe

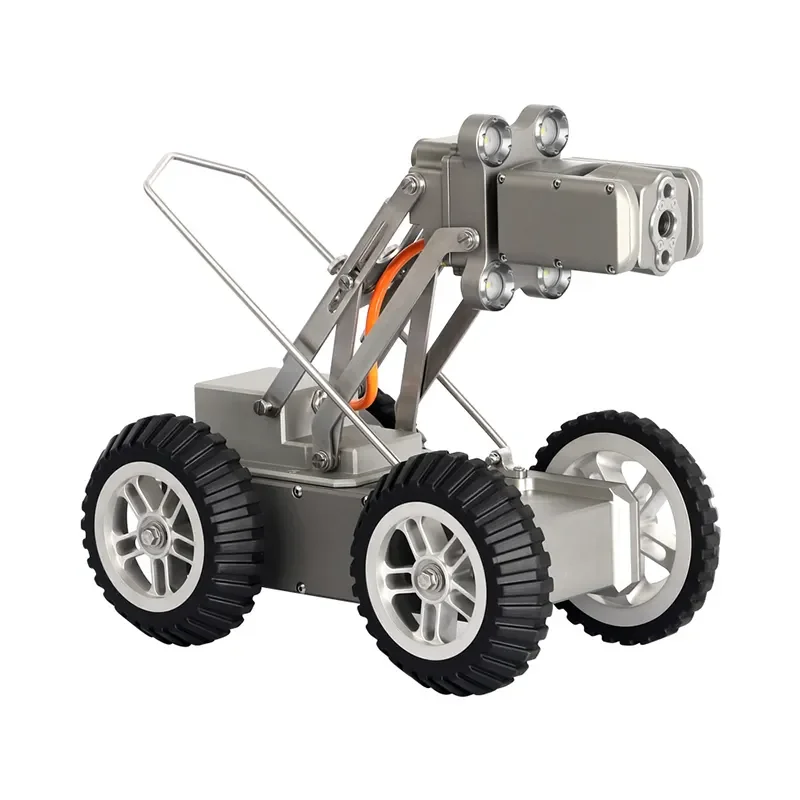

 T his is a high-definition pipeline robot, it can adapt to the diameter of 300mm-1500mm, with bright lighting, with high-strength climbing ability, the maximum climbing ability is not less than 30 degrees. In-pipe robot body forward, backward, left and right turn when the body attitude real-time animation, the body bracket can be manually adjusted to meet the needs of different pipe diameter. Standard with 60 meters thick wear-resistant cable, you can screenshot, video, superimposed display date and time, construction information, cable length and other information. The IP68 crawler is waterproof, and the special-shaped anti-skid tire can be designed according to the forces in the pipeline to adapt to all kinds of wet and slippery scenes Successful Project Aircraft engine inspection Wind capacitance cavity detection Burr check of turbine die PRODUCT SPECIFICATIONS

material quality	High-strength alloy material		Drive way		four wheel drive
mode of exercise	Four rounds of crawling		velocity		2-25 m / min level 3 speed regulation
power of motor	100W		Lens pixels		Two million
Lens rotation Angle	Infinite rotation at 360 degrees at constant speed		Lens flip Angle		190 Degrees
Lens material	alloy steel		Light power		100W
Front lens light source	4 main headlights, 2 lens auxiliary lights		Rear lens light source		Two
Light source regulation	Infinite dimming		classification of waterproof		IP68
size	522.5mm*212mm*198.5mm		Wire frame material		all-metal
weight	9.8KG		Cable length		60M

FAQ Q1: What is the diameter and focal length of this camera? A1: The diameter of the camera is 3mm, which can be customized. The focal length is 5mm-50mm
